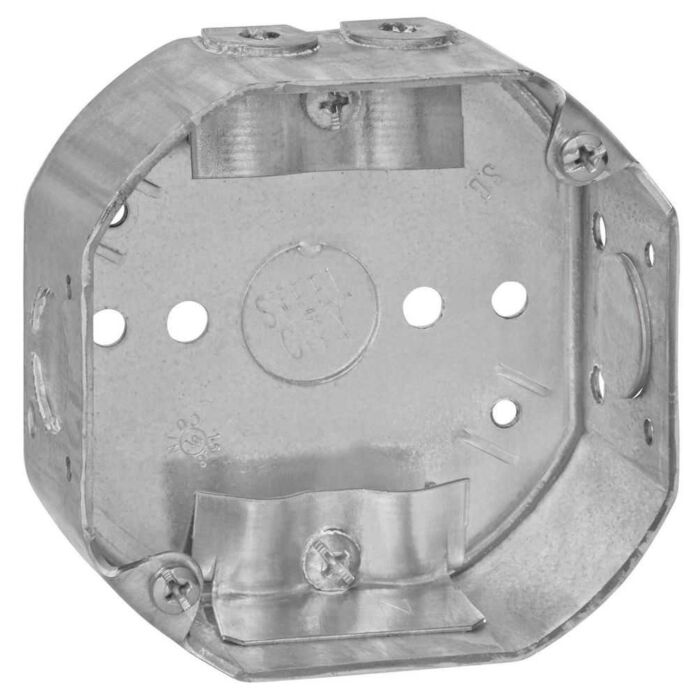

4" x 1-1/2", 15.8 Cu Inch Capacity, Silver, Pre-Galvanized Steel, 7-Knockout, Drawn, Electrical Octagon Box with Clamp and Adjustable Ear
Product Description
More Information
Electrical Octagon Box; Type Drawn; Depth 1-1/2 Inch; Diameter 4 Inch; Capacity 15.8 Cubic Inch; Shape Octagon; Number of Knockouts 7; Knockout Location (1) Bottom, (2) Sides, (4) Cable Ends; Knockout Size (1) 1/2 Inch Conduit Bottom, (2) 1/2 Inch Conduit Sides, (4) Cable Ends; Material 0.062 Inch Hot Rolled Pre-Galvanized Steel; Mounting Wall/Ceiling; Clamp Type Type C-5 Non-Metallic Sheathed Cable; Approval UL; Standard Package 50 per Carton; Color Silver
Steel City® is the industry-leading product line of metallic switch and outlet boxes used in electrical construction. Steel City® switch and outlet boxes are protected from rust and corrosion by zinc-galvanizing. All clamps and other component parts are electrogalvanized separately, before assembly in the box, to ensure corrosion protection of every surface. Steel City® galvanized finish meets the requirements of Underwriters Laboratories, Inc. and Federal Specifications.
Specifications
Specifications
Approval
UL
Capacity
15.8 Cubic Inch
Clamp Type
Type C-5 Non-Metallic Sheathed Cable
Depth
1-1/2 Inch
Diameter
4 Inch
Individual Item Weight
54.000 Pound per 100
Knockout Location
(1) Bottom, (2) Sides, (4) Cable Ends
Knockout Size
(1) 1/2 Inch Conduit Bottom, (2) 1/2 Inch Conduit Sides, (4) Cable Ends
