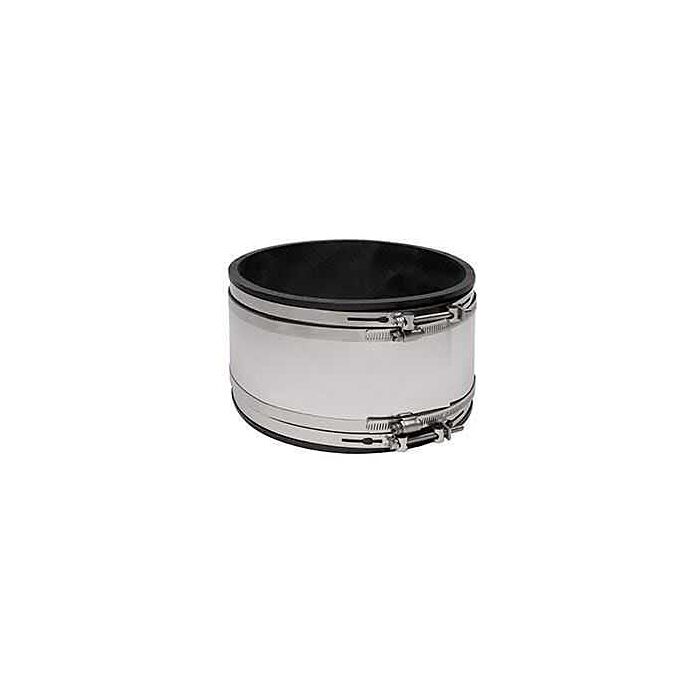

8" x 8", 4.3 PSI, PVC-DWV Gasket, Flexible, Shielded, Strong Back, Clay to Cast Iron/Plastic, Straight, Repair Coupling
Product Description
More Information
Designed to Resist Heavy Earth Loads and Shear Forces Underground While Providing Improved Pipe Alignment; Ultimate Shear Resistance - Steel Shear Ring is the Heaviest the Industry Offers with Excellent Resistance to Corrosion; Ultimate Pipe Alignment - Due to the Thickness and Strength of the RC Series Shear Ring, Assured Consistent Pipe Alignment Against Shear Forces from Soil Compaction, Shifting and Settling and Improper Backfill; Ultimate Sealing Clamps - Nut and Bolt Clamps Provide the Greatest Corrosion Resistance Possible; Ultimate Sealing Gasket - Designed for Same Pipe Size and Material Connections as Well as Differing Pipe Size and Pipe Material Connections, The Gasket has a Smooth Inside Surface Providing Greater Sealing Performance than Ribbed Surfaces; The Smooth Internal Wall of the Gasket Makes Contact 360 Degree Over its Entire Length, This Equates to a Larger Sealing Surface and a Higher Coefficient of Friction, Providing Maximum Sealing Capabilities as Well as Preventing Slippage Under the Weight of Shear Forces; The Gaskets have Excellent Resistance to Sewer Gas, Common Household Chemicals Found in the Sewer System, as Well as Dry Rot, Fungus Growth, Ozone and UV; When Properly Installed Strong Back RC Series Gaskets will Provide Decades of Problem Free Service; Ultimate Transition Connections - For the Transition Connection of Differing Pipe Sizes or Materials, The RC Series Gasket Features a 1-Piece Molded-In Bushing; Ultimate Versatility - The 5000 Series Offers the Ability to Connect Clay, Concrete, Asbestos Cement Fiber, Ductile Iron, Cast Iron, Steel, Plastic and Copper; Environmental Commitment; Made in USA
Repair Coupling Fitting; Type Flexible, Strong Back, Clay to Cast Iron/Plastic; Size A 8 Inch; Size B 8 Inch; Material Elastomeric PVC (Body), 301 Stainless Steel (Clamp/Clamp Band), 305 Stainless Steel (Clamp Screw); Material Specification ASTM D5926/C1173; Pressure Rating 4.3 PSI (Test); Temperature Rating -30 to 140 Deg F; Application Underground Piping System; Applicable Standard UPC, ICC-ES-PMG, CSA B602; Overall Dimension 10.46 Inch x 5.89 Inch; Torque Rating 60 Inch-Pound; Includes 0.012 Inch 300 Stainless Steel Shear Ring
Fernco makes the most complete line of couplings in the industry, from sizes 3/4" and larger. Custom large diameter couplings are available, along with shielded transitional couplings to ensure all pipes, underground and above-ground, can be connected with a Fernco coupling. Because Fernco couplings have earned a reputation for superior performance, you can have full confidence in their quality and reliability.
