Press-Type End Connections Eliminate the Need for Soldering, Reducing Labor and Material Costs and Eliminating the Fire Hazard Associated with the Process
• Press-To-Connect Connections are Designed for Installation onto ASTM B88 Types K, L and M Hard-Drawn Copper Tubing
• Lead-Free""

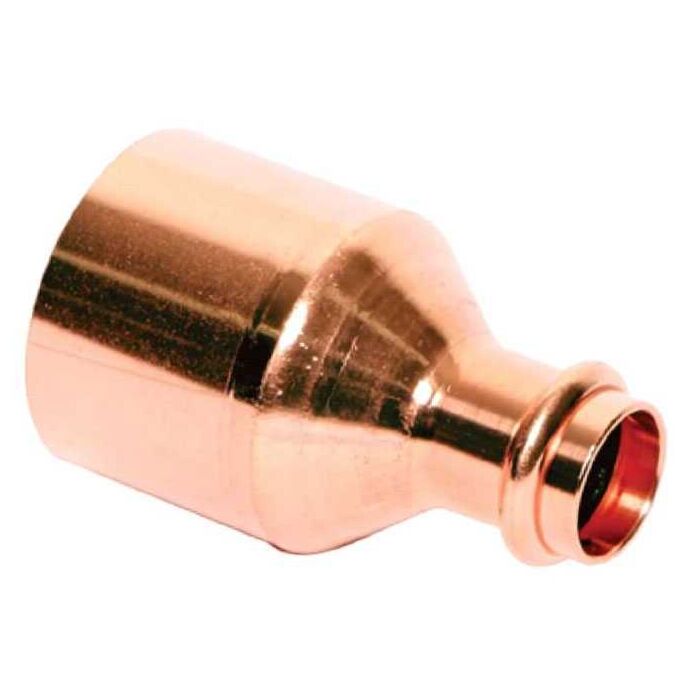

• Coupling Fitting • Type Reducing • Size A 3/4 Inch • Size B 1/2 Inch • End Connection Male Soldered x Press • Material C12200/C11000 Copper Alloy • Material Specification ASTM B75/B152 • Process Wrot • Pressure Rating 200 PSI CWP, 15 PSI SWP • Temperature Rating 0 to 250 Deg F • Gasket Supplied Yes • Gasket Details EPDM O-Ring • Application Potable Water, Plumbing • Applicable Standard ANSI/ASME B16.51/B16.22/B1.20.1, NSF/ANSI 61, UPC/IAPMO, CSA, CUPC • Lead-Free • Includes Stainless Steel Grip Ring, Acetal Resin Guide Ring
• Lead-Free • Includes Stainless Steel Grip Ring, Acetal Resin Guide Ring
