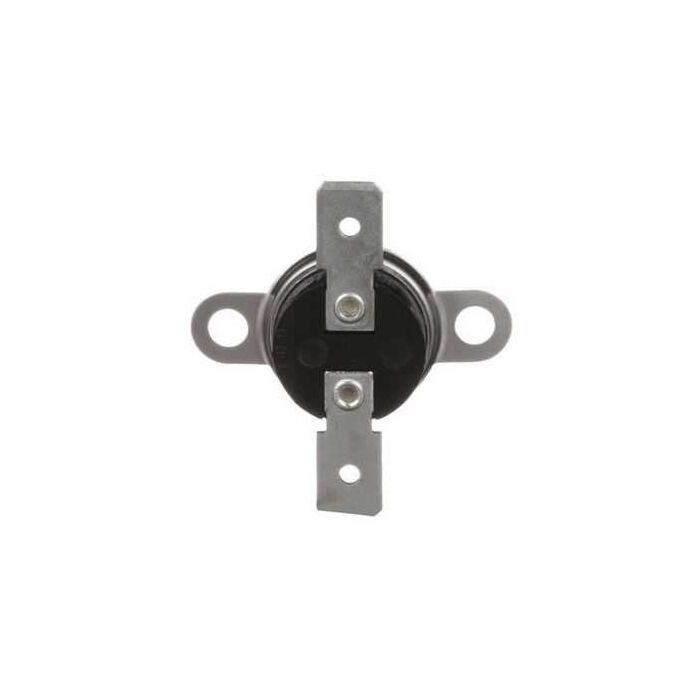

W/R SNAP DISC LIMIT CONTROL
Call for Availability
120/240 VAC Full Load, 120/240/277 VAC Resistive, 10/0.5 FLA, 25 A Resistive, 125 VA Pilot Duty, 190/230 Deg F Cut-In/Cut-Out, SPST, Open on Rise, Automatic Reset, Fixed Temperature, Snap Disc Fan Limit Control Thermostat
Product Description
Specifications
| Current Rating | 10 Amp at 120 Volt AC/5 Amp at 240 Volt AC (Full Load), 25 Amp at 120/240 Volt AC/21.6 Amp at 277 Volt AC (Resistive) |
|---|---|
| Individual Item Weight | 0.200 Ounce |
| Manufacturer | Emerson Electric Co. (White-Rodgers) |
| Manufacturer Name | Emerson Electric Co. (White-Rodgers) |
| Manufacturer Part Number | 3L01-230 |
| Package/Shipping Quantity | 10 per Case |
| Power Rating | 125 Volt Amp at 120/240/277 Volt AC (Pilot Duty) |
| Series/Model | 3L |
| Size | 3/4 Inch Disc |
| Switch Type | SPST, Close on Rise |
| Temperature Rating | 190 Deg F (Cut-In), 230 Deg F (Cut-Out) |
| UNSPSC | 41112209 |
| UPC | 786710001949 |
| Voltage Rating | 120/240 Volt AC (Full Load), 120/240/277 Volt AC (Resistive/Pilot Duty) |
