• Advanced Snap-Lockdesign Allows Assembly and Disassembly with Equal Ease for Quicker Installation and Easy Repositioning on the Job
• Separate Valve and Drain Boxes Allow Paired or Split Boxes Between Walls or Stud Bays to Prevent Supply/Drain Crossovers
• Dual Box Design Provides Ideal Options for Stacked Washer/Dryers and Space-Limited Laundry Rooms
• Stands up to the Roughest Job Site Abuse and No Transition Cement Needed when Solvent Welding PVC Pipe
• Two Piece Valve Design Makes Valve Replacement Easy to Repair without Damaging Drywall
• Valves Rated to 150 PSI Air and 250 PSI Water
• Plumber-Preferred, Quarterturn Test Plug with Gasket Provided with Every Drain Box
• This Means No Knock Outs Falling into Drains and No Tools Required
• Oatey® Exclusive Feature
• Lead-Free""

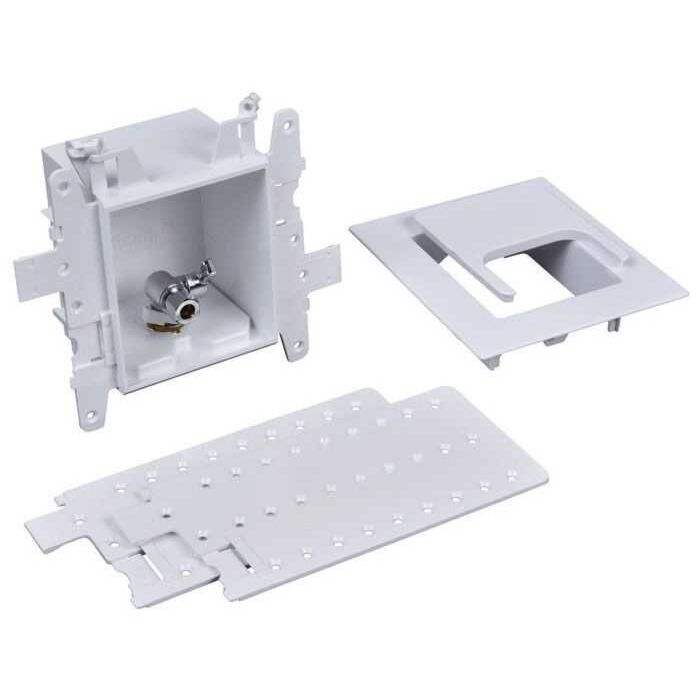

• Toilet/Dishwasher Outlet Box • Item Toilet/Dishwasher Outlet Box • Type Standard • Pipe Connection ASTM F1960 PEX • Box Size 8 Inch Width x 3.38 Inch Depth x 4.85 Inch Height • Face Plate Size 6 Inch Width x 1.25 Inch Depth x 6.45 Inch Height • Material PVC • Color/Finish White • Valve Supplied Yes • Valve Details 3/8 Inch Compression 2-Piece Chrome Plated Forged Brass • Inclusions/Features (2) Side Bracket, Sticker Cover, Faceplate Insert • Applicable Standard ASME A112.18.1, ASSE 1010, CSA B125.1, NSF/ANSI 61/372, IAPMO, UPC • Lead-Free • Temperature Rating 250 Deg F • Pressure Rating 100 PSI (Air), 250 PSI (Water) • Bracket Length 8 Inch • Application Commercial and Residential
• Lead-Free • Temperature Rating 250 Deg F • Pressure Rating 100 PSI (Air), 250 PSI (Water) • Bracket Length 8 Inch • Application Commercial and Residential
• Moda Supply Box System is designed to meet the needs of plumbing contractors for washing machine, ice maker, lavatory, toilet, dishwasher and SureVent®Air Admittance Valve applications. A universal single box platform provides maximum versatility, installation simplicity and rugged reliability. MODA Supply Box System is the ultimate solution for speed and flexibility.
MODA™
Specifications
Specifications
Box Size
8 Inch Width x 3.38 Inch Depth x 4.85 Inch Height
Color Finish
White
Face Plate Size
6 Inch Width x 1.25 Inch Depth x 6.45 Inch Height
Manufacturer
Oatey Co.
Manufacturer Name
Oatey Co.
Material
PVC
Package/Shipping Quantity
12 per Carton
Pipe Connection
ASTM F1960 PEX
Type
Standard
UNSPSC
40141700
UPC
038753379012
Valve Details
3/8 Inch Compression 2-Piece Chrome Plated Forged Brass
