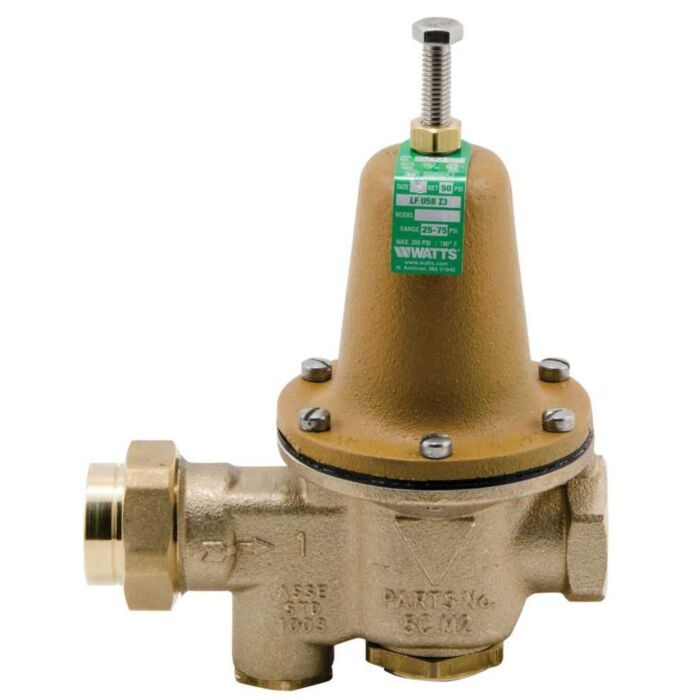

2" x 2", FPT x FPT, 300 PSI, Lead-Free, Cast Copper Silicon Alloy, Diaphragm Actuation, Standard, Heavy, Rugged, Water Pressure Reducing Valve with Thermal Expansion Bypass
Product Description
More Information
Standard Construction Includes Z3 Sealed Spring Cage and Stainless Steel Corrosion Resistant Adjusting Cage Screws for Accessible Outdoor or Pit Installations; Integral Stainless Steel Strainer; Replaceable Seat Module; Serviceable in Line; Bypass Feature Controls Thermal Expansion Pressure (LFU5B-Z3); High Temperature Resistant Reinforced Diaphragm for Hot Water; Lead-Free
Water Pressure Reducing Valve; Type Standard, Heavy, Rugged; Actuation Type Diaphragm; Nominal Size 2 Inch x 2 Inch; End Connection Female Threaded x Female Threaded; End to End Distance 10-7/8 Inch; Body Material Cast Copper Silicon Alloy; Seat Material Stainless Steel; Downstream Pressure Range 25 to 75 PSI; Standard Factory Setting 50 PSI; Strainer Supplied Yes; Temperature Rating 33 to 160 Deg F; Pressure Rating 300 PSI; Inclusions/Features Thermal Expansion Bypass, Stainless Steel Strainer, Stainless Steel Trim, EPDM Disc; Application Commercial, Residential; Applicable Standard NSF, ANSI A112.26.2, CSA, ASSE, IAPMO; Lead-Free; Includes Thermal Expansion Bypass
This 2 inch lead free high performance water pressure reducing valve with a lead free cast copper silicon alloy body is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
