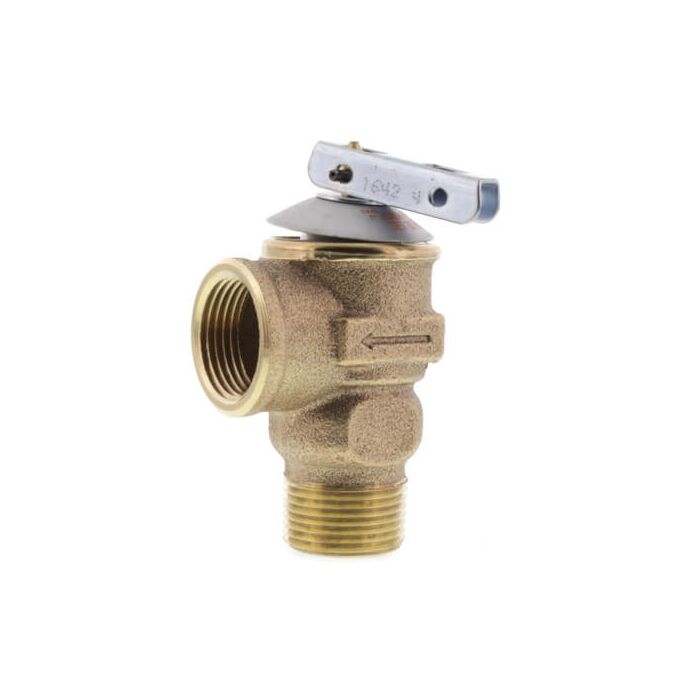

3/4 M X 3/4 F 30# RELIEF VALVE HOT WATER

3/4 M X 3/4 F 30# RELIEF VALVE HOT WATER

Print this page

Skip to the end of the images gallery

main product photo

Skip to the beginning of the images gallery

SKU

20166-0030

Call for Availability

Product Description

More Information
Designed for Installation on Water Heating Storage Vessels to Protect Against Over Temperature or Excessive Pressure	Pressure Relief Valve; Type Pressure; Inlet Size 3/4 Inch; Outlet Size 3/4 Inch; End Connection Male Threaded x Female Threaded; Body Material ASTM B584 Cast Brass/Bronze; Spring Material ASTM A313 Stainless Steel; Set Pressure Range 30 PSI; Inclusions/Features Stainless Steel/300 Series Brass/ASTM B36/B16 EP/Silicone Internal, Epoxy Coated Copper Tube Probe; Application Water Heating Storage Vessel; Applicable Standard ANSI Z21.22/CSA 4.4, ASME Section IV, FDA; Capacity 500000 BTU/Hour (ASME Section IV)

Specifications

Specifications
Body Material	ASTM B584 Cast Brass/Bronze
End Connection	Male Threaded x Female Threaded
Individual Item Weight	0.47
Inlet Size	3/4 Inch
Manufacturer	Rexnord Corporation / Zurn Elkay Water Solutions (Zurn Wilkins)
Manufacturer Name	Rexnord Corporation / Zurn Elkay Water Solutions (Zurn Wilkins)
Outlet Size	3/4 Inch
Package/Shipping Weight	0.47
Series/Model	P1000AXL
Set Pressure Range	30 PSI
Spring Material	ASTM A313 Stainless Steel
Type	Pressure
UNSPSC	40141606
