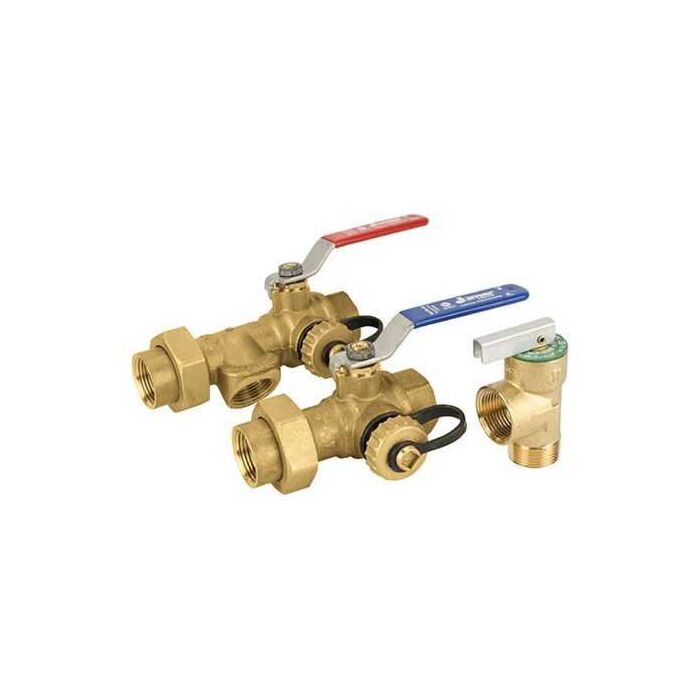

3/4" x 3/4" x 3/4", NPT x NPT x NPT, 600 PSI WOG, Lead-Free, CW511L DZR Brass Body, CW510L TEA Coated Brass Ball, Standard Port, 3-Way, Tankless Water Heater Ball Valve Kit
Product Description
More Information
Wetted Surfaces Contain Less than 0.25% Lead Content; 100% Leak Tested; Limited Lifetime Warranty (Leakproof Stem); Meets Requirements of the Buy American Act; Lead-Free
Tankless Water Heater Ball Valve Kit; Type 3-Way; Actuation Type Lever Handle; Nominal Size 3/4 Inch x 3/4 Inch x 3/4 Inch; End Connection Threaded x Threaded x Threaded; End to End Distance 5.11 Inch (Hot), 3.93 Inch (Cold); Ball Material CW510L TEA Coated Brass; Body Material CW511L DZR Brass; Stem Material CW510L Brass; Seat Material PTFE; Seal Material PTFE; Handle Material Geomet Plated Steel; Port Type Standard; Temperature Rating -40 to 500 Deg F; Pressure Rating 600 PSI WOG, 150 PSI WSP; Inclusions/Features 3/4 Inch Pressure Relief Valve, Leakproof Stem, (2) FKM O-Ring, CW510L Brass Tail Piece/Cap, Buna-N Flat Washer; Applicable Standard ANSI B1.20.1/B1.20.7, NSF 61-8/372; Lead-Free
