1 Inch I.P.S. Screwdriver Bak-Chek® Angle Stop with Vandal Resistant Stop Cap; Optima® El-1500 Self-Adaptive Infrared Sensor with Indicator Light; Walk by Delay of Eight (8) Seconds Prevents Unintentional Flushes; Non-Hold-Open Integral Solenoid Operator, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation; Vacuum Breaker Flush Connection with One-Piece Bottom Hex Coupling Nut, Spud Coupling and Flange for 1-1/2 Inch Top Spud; Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from Permex® Rubber Compound for Chloramine Resistance; ADA Compliant

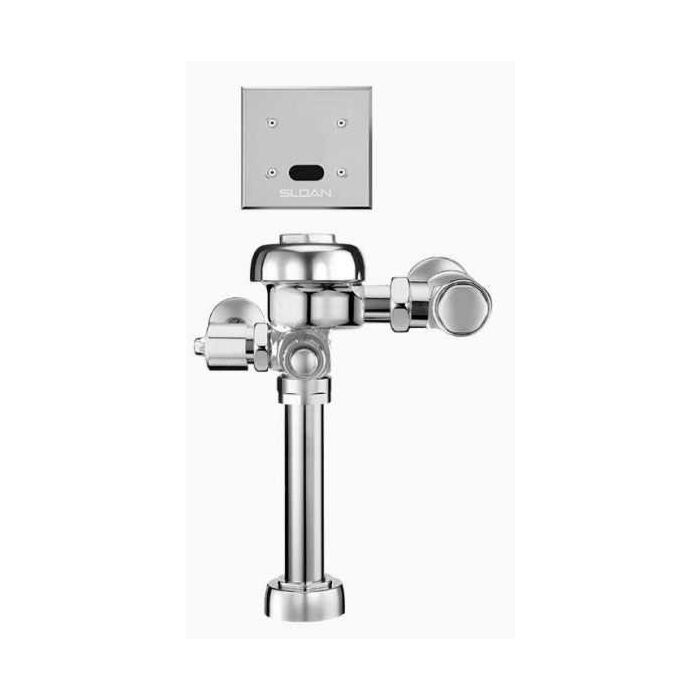

Sensor Water Closet Flushometer; Type Dual Filtered Fixed Bypass Diaphragm, Exposed Sensor, Single Flush, True Mechanical Override; Actuation Type Hardwired, Infrared Sensor; Body Configuration Top Spud; Inlet Size 1 Inch; End Connection IPS Threaded; Spud Size 1-1/2 Inch; Body Material Semi-Red Brass; Seat Material Molded PERMEX Rubber; Flow Rate 1.6 GPF; Mounting Type Top Mount; Input Supply Rating 24 Volt AC; Sweat Solder Kit Supplied Yes; Inclusions/Features Vandal Resistant Stop Cap, Sweat Solder Adapter with Cover Tube and Cast Wall Flange, Infrared Sensor with Indicator Light, Handle Packing, Main Seat, Stop Seat and Vacuum Breaker; Used On Item Water Closet; Applicable Standard ADA, ANSI/ASME 112.19.2, ASSE 1037, CUPC, UL 376U, BAA; Pressure Rating 15 to 80 PSI (Flow); Rough-In Size 11.5 Inch; Finish Polished Chrome
