Sweat Solder Adapter with Cover Tube and Cast Set Screw Wall Flange; Handle Packing, Main Seat, Stop Seat and Vacuum Breaker Molded from Permex® Rubber Compound for Chloramine Resistance; Low Battery Flashing LED; Infrared Sensor with Multiple-Focused, Lobular Sensing Fields for High and Low Target Detection; Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation; Flex Tube Diaphragm Designed for Improved Life and Reduced Maintenance; Engineered Metal Cover with Replaceable Lens Window; ADA Compliant

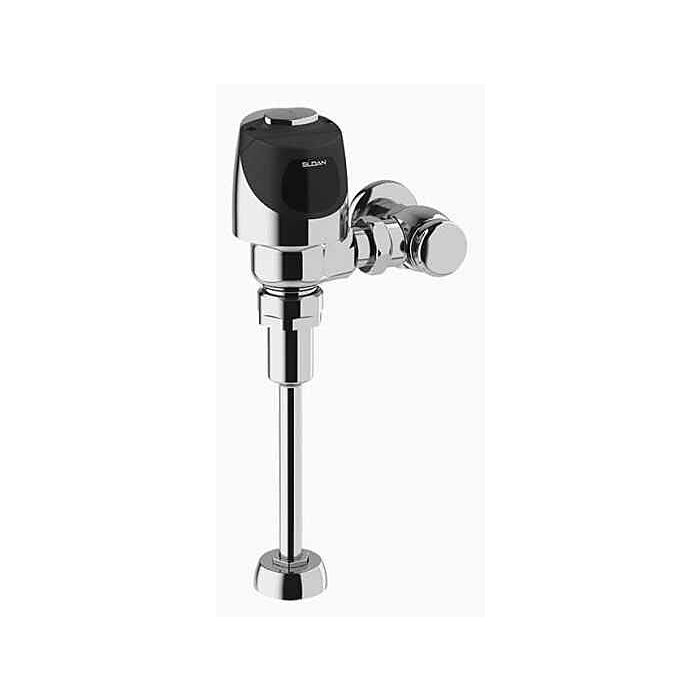

Urinal Flushometer; Type 1-Flush, Diaphragm, Exposed; Actuation Type Battery Powered Infrared Sensor; Body Configuration Top Spud; Inlet Size 3/4 Inch; End Connection IPS Inlet; Spud Size 3/4 Inch; Body Material Semi-Red Brass; Seat Material Molded Permex Rubber; Flow Rate 1 GPF; Mounting Type Top; Battery Details (4) AA Alkaline; Sweat Solder Kit Supplied Yes; Inclusions/Features Battery, Angle Stop with Vandal Resistant, Metal Cover and Lens Window; Used On Item Urinal; Applicable Standard ADA, ANSI/ASME 112.19.2, ASSE 1037, BAA, CUPC; Finish Polished Chrome; Rough-In Size 11-1/2 Inch; Pressure Rating 15 to 80 PSI
