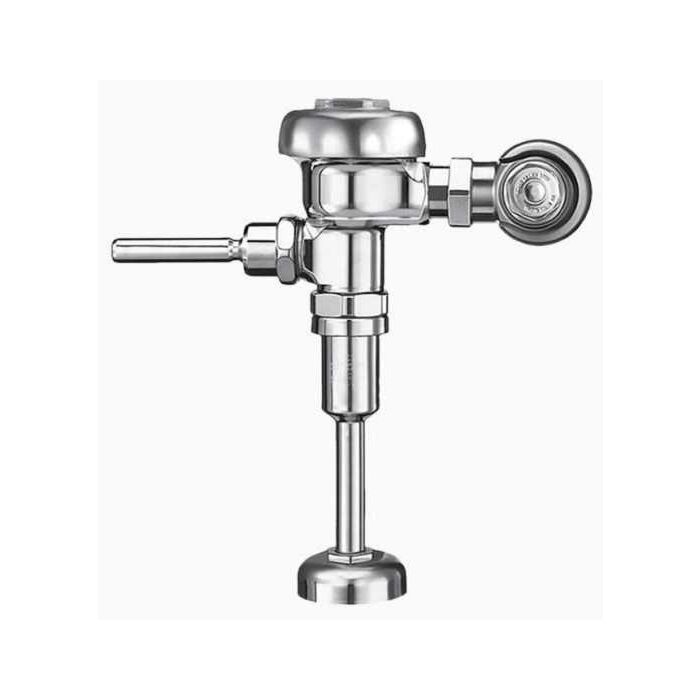

3/4" IPS, 3/4" Top Spud, 11-1/2" Rough-In, 1.5 GPF, 15 to 80 PSI, Polished Chrome, Semi Red Brass, Top Mount, Metal Oscillating Non-Hold Open Handle, 1-Flush, Diaphragm, Exposed Manual, Urinal Flushometer
Product Description
More Information
Control Stop Plug; Sweat Solder Adapter with Cover Tube; Cast Wall Flange with Set Screw; Vacuum Breaker Flush Connection; Non-Hold-Open Handle and No External Volume Adjustment to Ensure Water Conservation; ADA, BAA Compliant
Urinal Flushometer; Type 1-Flush, Diaphragm, Exposed, Manual; Actuation Type Oscillating Non-Hold Open Handle; Body Configuration Top Spud; Inlet Size 3/4 Inch; End Connection IPS Inlet; Spud Size 3/4 Inch; Body Material Polished Chrome Semi-Red Brass; Handle Material Metal; Flow Rate 1.5 GPF; Mounting Type Top; Sweat Solder Kit Supplied Yes; Inclusions/Features Control Stop Plug, Handle Wheel Bak-Chek Angle Stop, Cast Wall Flange with Set Screw; Used On Item Urinal; Applicable Standard ADA, ASSE 1037, ANSI/ASME 112.19.2, BBA, CUPC; Rough-In Size 11-1/2 Inch; Pressure Rating 15 to 80 PSI
