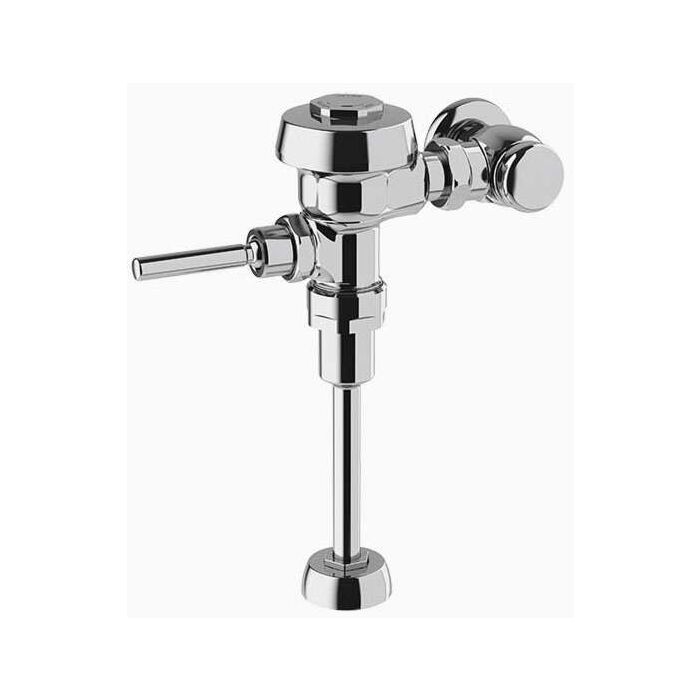

3/4" IPS Inlet, 3/4" Top Spud, 11-1/2" Rough-In, 1.5 GPF, 15 to 80 PSI, Polished Chrome, Semi-Red Brass, Molded Permex Rubber Seat, Top Mount, 1-Flush, Diaphragm, Exposed, Manual, Urinal Flushometer
Product Description
More Information
High Chloramine Resistant Permex® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass; Sweat Solder Adapter with Cover Tube and Cast Wall Flange with Set Screw; Non-Hold-Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation; Diaphragm, Handle Packing and Vacuum Breaker to be Molded from Permex® Rubber Compound for Chloramine Resistance; ADA/BAA Compliant
Urinal Flushometer; Type 1-Flush, Diaphragm, Exposed, Manual; Actuation Type Oscillating Non-Hold Open Handle; Body Configuration Top Spud; Inlet Size 3/4 Inch; End Connection IPS Inlet; Spud Size 3/4 Inch; Body Material Polished Chrome Semi-Red Brass; Seat Material Molded Permex Rubber; Handle Material Metal; Flow Rate 1.5 GPF; Mounting Type Top; Sweat Solder Kit Supplied Yes; Inclusions/Features Dual Filtered Fixed Bypass Diaphragm, Sweat Solder Adapter with Cover Tube, Cast Wall Flange with Set Screw, Angle Stop, Free Spinning Vandal Resistant Stop Cap; Used On Item Urinal; Applicable Standard ADA, ANSI/ASME 112.19.2, ASSE 1037, BAA, CUPC; Rough-In Size 11-1/2 Inch; Pressure Rating 15 to 80 PSI
