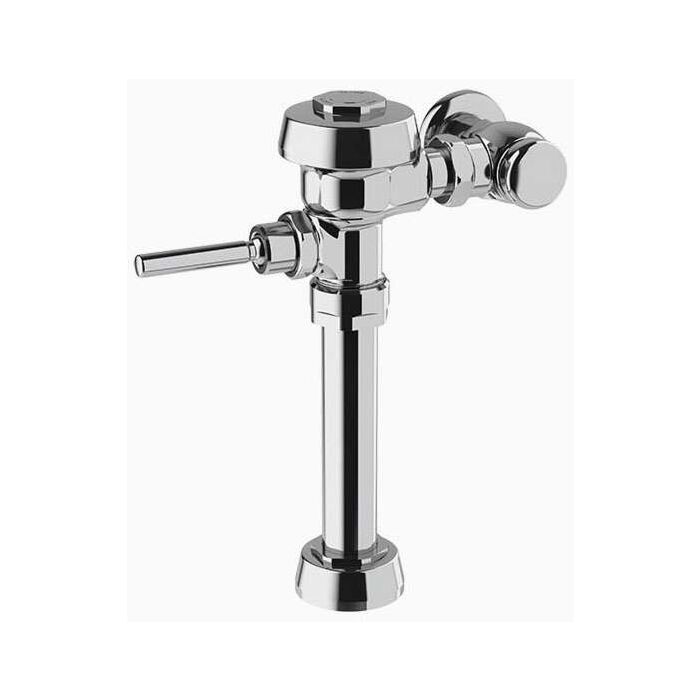

1" IPS Inlet, 1-1/2" Top Spud, 11-1/2" Rough-In, 1.6 GPF, 15 to 80 PSI, Polished Chrome, Semi-Red Brass, Molded Permex Rubber Seat, Metal Oscillating Non-Hold Open Handle, 1-Flush, Diaphragm, Exposed, Manual, Water Closet Flushometer
Product Description
More Information
Water Conservation is Aided by the ADA Compliant, Non-Hold Open Handle, which Prevents Toilet from Exceeding Intended Flush Volume; Flush Accuracy is Controlled by CID™ Technology also Enhancing Water Efficiency; Integrity of the Product is Maintained with the Vandal Resistant Stop Cap; Durability is Facilitated with High Copper, Low Zinc Brass Castings for Dezincification Resistance; PERMEX® Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass; High Back Pressure Vacuum Breaker Flush Connection with 1-Piece Bottom Hex Coupling Nut; Non-Hold Open Handle, Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation; Diaphragm, Handle Packing and Vacuum Breaker to be Molded from PERMEX® Rubber Compound for Chloramine Resistance; ADA Compliant
Water Closet Flushometer; Type 1-Flush, Diaphragm, Exposed, Manual; Actuation Type Oscillating Non-Hold Open Handle; Body Configuration Top Spud; Inlet Size 1 Inch; End Connection IPS Inlet; Spud Size 1-1/2 Inch; Body Material Semi-Red Brass; Seat Material Molded Permex Rubber; Handle Material Metal; Flow Rate 1.6 GPF; Sweat Solder Kit Supplied Yes; Inclusions/Features Adjustable Tailpiece, Dual Filtered Bypass Diaphragm, Vacuum Breaker Flush Connection, 1-Piece Bottom Hex Coupling Nut, Diaphragm, Cast Wall Flange with Set Screw, Non-Hold-Open Handle, Angle Stop, Free Spinning Vandal Resistant Stop Cap; Used On Item Water Closet; Applicable Standard ADA, CUPC, BAA, ASSE 1037, ANSI/ASME 112.19.2; Finish Polished Chrome; Rough-In Size 11-1/2 Inch; Pressure Rating 15 to 80 PSI
