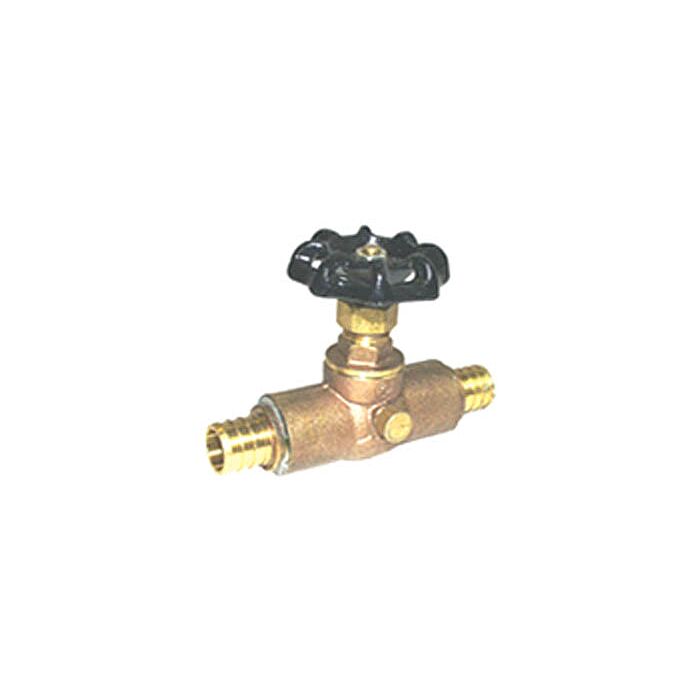

1/2", PEX x PEX, 125 PSI CWP, Lead-Free, Cast Brass Body, NBR Seat, Cast Iron Handwheel, Stop and Waste Valve
Product Description
More Information
Design is Suitable for All No-Lead Potable Water Installation in Full Compliance of all No-Lead Plumbing Laws; Full-Pattern Body, Packing and Hand Wheel Construction; Convenient Stop-and-Waste Configuration; An Electric-Induction Furnace Cast Process Optimizes Molten Brass Temperatures, Resulting in Superior Components; Equipped with a Stem Packing and Packing Nut Design, Which are Superior to Pickles-Bonnet Stem Seal Designs; Full-Pattern Body, Packing and Hand Wheel Construction is More Durable than Compactors’ Reduced-Material Examples; Lead-Free
Stop and Waste Valve; Actuation Type Handwheel; Nominal Size 1/2 Inch; End Connection PEX x PEX; End to End Distance 2.13 Inch; Body Material Cast Brass; Seat Material NBR; Handle Material Cast Iron; Pressure Rating 125 PSI CWP; Inclusions/Features Cadmium Plated Steel Handle Nut, Aluminum Identification Disc, Cast Brass Stem/Bonnet, Brass Packing Nut/Waste Cap, NBR Stem Packing/Waste Cap Seal, Stainless Steel Seat Retaining Screw; Applicable Standard CSA (Canada and US), NSF/ANSI 61; Lead-Free; Overall Dimension 3.1 Inch Length x 4.3 Inch Width x 2 Inch Height; Material Specification ASTM F1807
