Large, Integral Seat and Disc Sealing Surfaces Assure Positive Closure; Epdm Seat for Quiet Operation; Spring-Loaded Stem-Disc; 1-Pound Cracking Pressure; Can be Installed Iin Both Vertical and Horizontal Positions; VUS-Pattern Press-Connection Tubing Sockets; Lead-Free

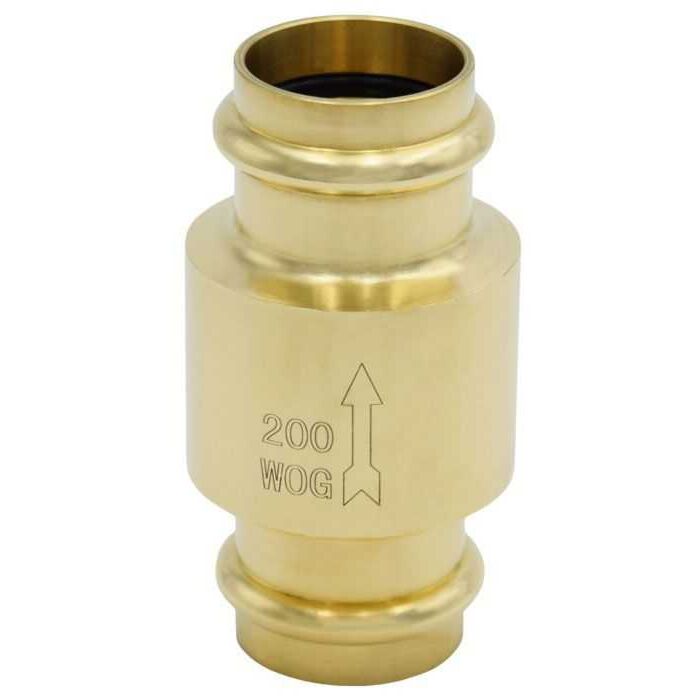

Check Valve; Type In-Line, Forged, Straight; Nominal Size 3/4 Inch x 3/4 Inch; End Connection Press x Press; End to End Distance 3.2 Inch; Body Material UNS C46500 Brass Alloy; Spring Material AISI 304 Stainless Steel Alloy; Seat Material EPDM; Temperature Rating 180 Deg F; Pressure Rating 200 PSI; Applicable Standard NSF/ANSI 61/372, ANSI/ASME B16.51; Lead-Free; Overall Dimension 1.5 Inch x 3.4 Inch x 1.4 Inch
