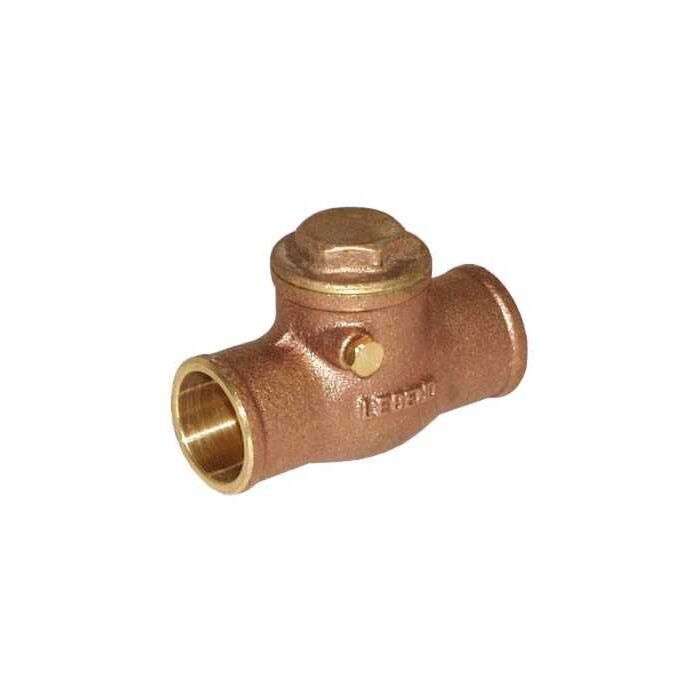

2 1/2" COPPER CHECK VALVE

SKU

13-0817

UPC:

662545090825

Call for Availability

2-1/2" x 2-1/2", Soldered x Soldered, 200 PSI CWP, Lead-Free, Cast Brass Body/Disc, Vertical/Horizontal, Full Pattern, T-Pattern, Swing, Check Valve

Product Description

More Information
Durable, Full Pattern Cast Brass Body; Forged Brass Hinge Pin Assures Smooth, Non-Binding Disc Operation; T-Pattern Body Permits Either Vertical (Upward Flow Only) or Horizontal (Assembly Cap Upright) Installations; Lead-Free; Made in USA	Check Valve; Type Swing, T-Pattern; Nominal Size 2-1/2 Inch; End Connection Female Soldered x Female Soldered; End to End Distance 6.88 Inch; Body Material UNS Alloy C87850 Cast Brass; Disc Material UNS Alloy C69300 Forged Brass; Cap Material UNS Alloy C87850 Cast Brass; Pressure Rating 200 PSI (CWP); Inclusions/Features Large Integral Seat and Disc, Forged Brass Hinge Pin, Non-Binding Disc; Application Potable Water; Applicable Standard ANSI/ASME B16.18, NSF/ANSI 372, ISO 9002; Lead-Free	Traditional

Specifications
Body Material	UNS Alloy C87850 Cast Brass
California Proposition 65 Warning	Yes
Cap Material	UNS Alloy C87850 Cast Brass
Connection Method	Sweat
Disc Material	UNS Alloy C69300 Forged Brass
End Connection	Female Soldered x Female Soldered
End To End Distance	6.88 Inch
Individual Item Weight	5.000 Pound
Lead Free	Yes
Manufacturer	Legend Valve
Manufacturer Name	Legend Valve
Manufacturer Part Number	105-209NL
Nominal Size	2-1/2 Inch
Package/Shipping Quantity	1 per Carton
Pressure Rating	200 PSI CWP
Series/Model	S-451NL
Size (Inches)	2-1/2"
UNSPSC	40141634
UPC	662545090825
Valve Material	Brass

More Information
Manufacturer Catalog Document	Manufacturer Specification/Technical Document	Manufacturer Warranty Document
