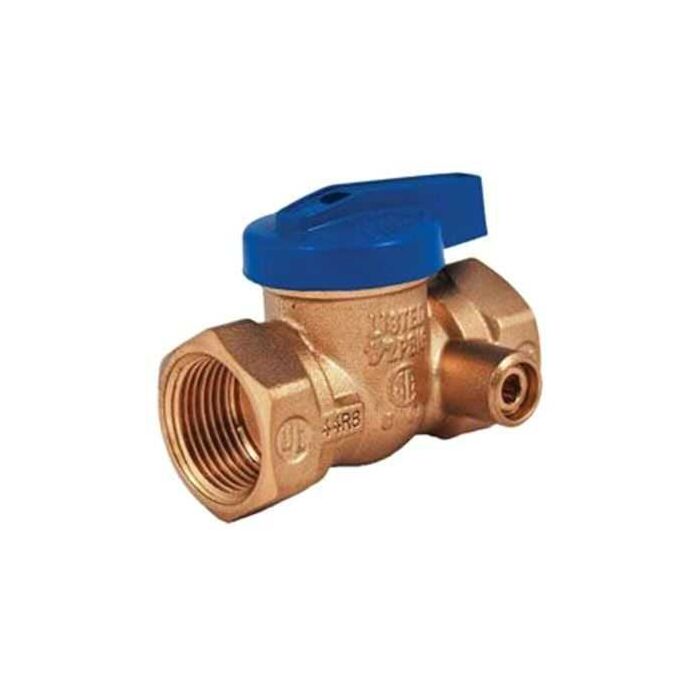

3/4" x 3/4", FPT x FPT, 175 PSI CWP, 1/4 Turn, 1-Piece, Gas Ball Valve
Product Description
More Information
Patented 1-Piece Forged Brass Body Eliminates the Possibility of Seam Leaks Common to 2-Piece Body Designs; Gas Ball Valves are Ideal for All Residential and Commercial Gas Installation; The Chrome Plated Ball and Nitrile Rubber Seats Resist Contamination Building up and Offer a Positive Seal in Low or Moderate Pressure Gas Application; Available in Eight Different Configurations, to Accommodate All Gas Connection Types
Gas Ball Valve; Type 1-Piece; Actuation Type 1/4 Turn; Nominal Size 3/4 Inch x 3/4 Inch; End Connection Female Threaded x Female Threaded; End to End Distance 2.68 Inch; Ball Material ASTM B124 UNS C37700 Chrome Plated Forged Brass; Body Material ASTM B124 UNS C37700 Forged Brass; Stem Material ASTM B124 UNS C37700 Forged Brass; Seat Material Type 7PB496 ASTM D2000 Nitrile Rubber; Handle Material Commercial Grade/Die-Cast Coated Aluminum; Pressure Rating 175 PSI CWP; Inclusions/Features 1/8 Inch Threaded Forged Brass Manometer Test Port and Plug, Synthetic Fiber Thrust Washer, Forged Brass Stem Retainer Bushing, Phosphor Bronze Wire Stem Retainer Clip, Zinc Plated Steel Handle Screw, Side Tap; Application Residential, Commercial, Low/Moderate Pressure Gas; Applicable Standard UL 125/842/1477, ANSI/ASME B1.20.1, ASME B16.44, ANSI Z21.15, CSA; Handle Color Blue Top; Capacity 726800 BTU
