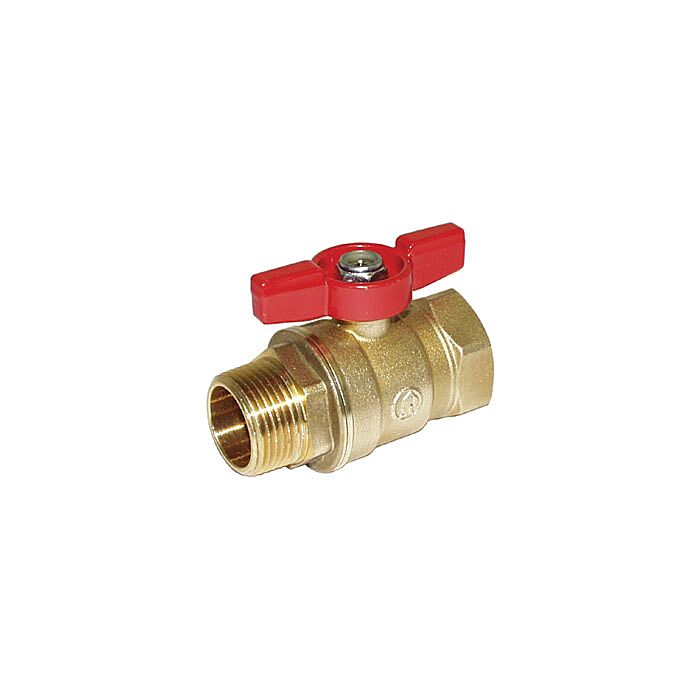

1/4" x 1/4", MPT x FPT, 125 PSI WSP, 600 PSI CWP, Lead-Free, Chrome Plated Forged Brass Ball, Forged Brass Body, Large Port, Lever Handle, Ball Valve
Product Description
More Information
Space Saving Male by Female End Connections are Ideal for Confined Piping Installations; Bottom Loaded Blowoutproof Stem is a Maintenance Free, Dual O-Ring Seal Design, Eliminating the Need to Tighten a Packing Nut; Lead-Free
Ball Valve; Type Mini; Actuation Type Lever Handle; Nominal Size 1/4 Inch x 1/4 Inch; End Connection Male Threaded x Female Threaded; End to End Distance 1.95 Inch; Ball Material CW510 UNS C28500 Chrome Plated Forged Brass; Body Material CW510 UNS C28500 Forged Brass; Stem Material CW510 UNS C28500 Chrome Plated Forged Brass; Seat Material Dyneon TFM PTFE; Seal Material (2) Viton Fluorocarbon Stem O-Ring, Dyneon TFM PTFE Anti Friction Washer; Handle Material ASTM A510 UNS G10060 Dacromet Coated Steel With Vinyl Sleeve; Pressure Rating 500 PSI CWP, 125 PSI CWP; Inclusions/Features TFM PTFE Anti Friction Thrust Washer, ASTM A510 UNS G10060 Dacromet Coated Steel with PVC Resin Lock Handle Nut; Application Potable Water; Applicable Standard ANSI/NSF 61-G, ANSI/ASME B1.20.1, CSA (Canada and US); Lead-Free
