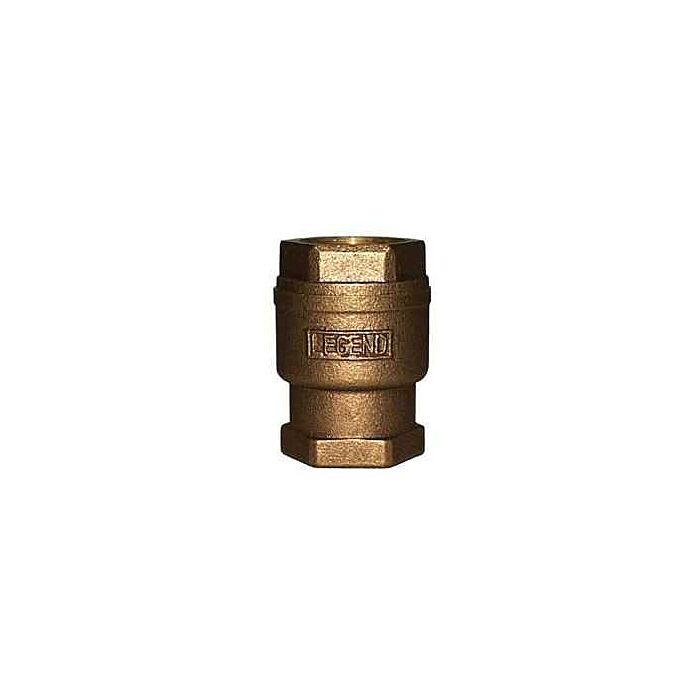

1 1/2 IP LEGEND IN LINE CHECK VERT CHECK SOFT SEAT
1-1/2" x 1-1/2", FPT x FPT, 250 PSI CWP, 125 PSI WSP, Cast Bronze, Spring Loaded, In-Line, Check Valve (32 per Case)
Product Description
Specifications
| Body Material | ASTM B584 Cast Bronze |
|---|---|
| California Proposition 65 Warning | Yes |
| Check Valve Type | Spring (Vertical) |
| Connection Method | Threaded |
| Disc Material | Buna-N Rubber |
| End Connection | Female Threaded x Female Threaded |
| End To End Distance | 3.47 Inch |
| Individual Item Weight | 2.130 Pound |
| Lead Free | Yes |
| Manufacturer | Legend Valve |
| Manufacturer Name | Legend Valve |
| Manufacturer Part Number | 105-447 |
| Nominal Size | 1-1/2 Inch x 1-1/2 Inch |
| Package/Shipping Height | 3.900 Inch |
| Package/Shipping Length | 8.600 Inch |
| Package/Shipping Quantity | 32 per Case |
| Package/Shipping Width | 9.800 Inch |
| Pressure Rating | 250 PSI (CWP), 125 PSI (WSP) |
| Seat Material | Buna-N Rubber |
| Series/Model | T-455 |
| Size (Inches) | 1-1/2" |
| Spring Material | ASTM B159 Phosphor Bronze Wire |
| Temperature Rating | 200 Deg F |
| UNSPSC | 40141622 |
| UPC | 662545006598 |
| Valve Material | Bronze |
