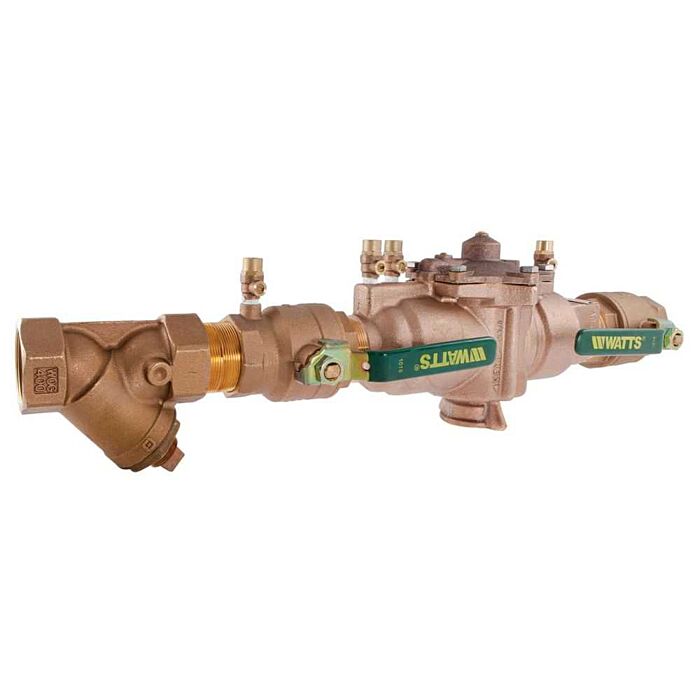

2" x 2", FPT x FPT, 175 PSI, 200 GPM, Lead-Free, Cast Bronze, In-Line, Modular, Compact, Top Entry, 1/4 Turn Ball Valve, Reduced Pressure Zone Backflow Preventer Assembly with Strainer
Product Description
More Information
Reduced Pressure Zone Assemblies are Designed to Protect Potable Water Supplies in Accordance with National Plumbing Codes and Water Authority Requirements; This Series Can be Used in a Variety of Installations, Including the Prevention of Health Hazard Cross-Connections in Piping Systems or for Containment at the Service Line Entrance; The LF009 Features Lead-Free Construction to Comply with Lead-Free Installation Requirements; Single Access Cover and Modular Check Construction for Ease of Maintenance; Top Entry All Internals Immediately Accessible; Captured Springs for Safe Maintenance; Internal Relief Valve for Reduced Installation Clearances; Replaceable Seat for Economical Repair; Large Body Passages Provides Low Pressure Drop; Compact Space Saving Design; No Special Tools are Required for Servicing; Meets Requirements of the Buy American Act; Lead-Free
Reduced Pressure Zone Backflow Preventer Assembly; Type Reduced Pressure Zone Assembly, Continuous Pressure, Compact, Top Entry; Valve Configuration In-Line; Nominal Size 2 Inch x 2 Inch; End Connection Female Threaded x Female Threaded; End to End Distance 26-1/3 Inch; Body Material Cast Bronze; Disc/Poppet Material Silicone; Seat Material Engineered Plastic; Temperature Rating 33 to 180 Deg F; Pressure Rating 175 PSI; Inclusions/Features 1/4 Turn Shut-Off Ball Valve, Strainer; Exclusions Cap and Tether, Elbow Fitting, Hot and Harsh Water, Polymer Coating, Bypass, Hydrant Connection; Application Health Hazard; Applicable Standard UL (US); Lead-Free; Protection Type Backpressure and Backsiphonage
This 2 inch Lead-Free reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and for contaminants at the service line entrance. This assembly consists of a Lead-Free bronze body and strainer, NPT end connections, quarter turn ball valve shutoffs with tee handles, top mounted test cocks, two in-line independent check valves, captured springs, and replaceable check seats with an internal relief valve for reduced space requirements.
