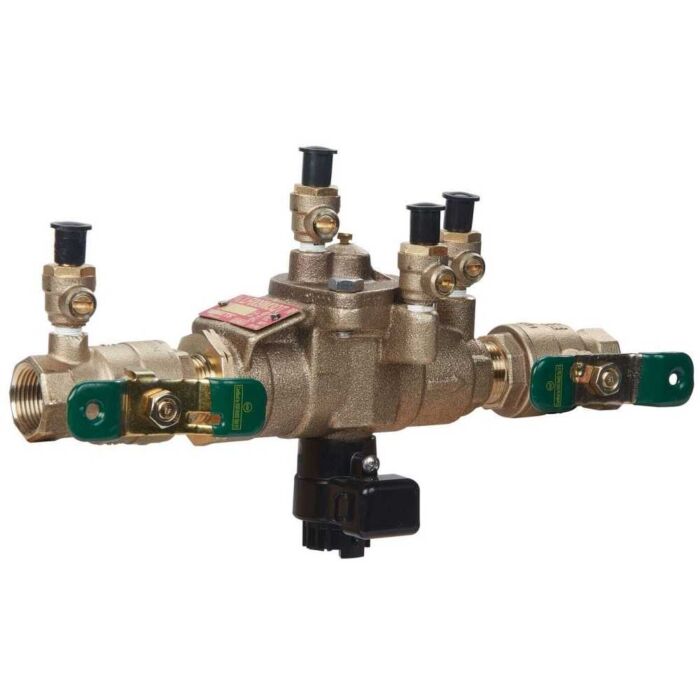

3/4" x 3/4", FPT x FPT, 175 PSI, Lead-Free, Cast Copper Silicon Alloy, In-Line, Reduced Pressure Zone Assembly, Backflow Preventer (1 per Carton)
Product Description
More Information
Integrated Flood Sensor with Sentryplus Alert Technology to Detect Excessive Water Discharges from the Relief Valve; 1/4 Turn Full Port Resilient Seated Ball Valve Shut-Off; Single Access Cover and Modular Check Construction for the Ease of Maintenance; Internal Relief Valve for Reduced Installation Clearances; Replaceable Seats for an Economical Repair; Test Cocks are Screwdriver Slotted; Lead-Free
Backflow Preventer; Type Reduced Pressure Zone; Valve Configuration Quarter Turn; Nominal Size 3/4 Inch; End Connection Female Threaded x Female Threaded; End to End Distance 13-15/16 Inch; Body Material Cast Copper Silicon Alloy; Disc/Poppet Material Silicone Rubber; Seat Material Stainless Steel; Flow Rate 46 GPM; Temperature Rating 33 to 180 Deg F; Pressure Rating 175 PSI; Inclusions/Features Full Port, Resilient Seated Ball Valve Shut-Off, Flood Detection Integrated Sensor; Application Health Hazard, Water; Applicable Standard UL, CSA B64.4, UPC, ASSE 1013, IAPMO 1563, AWWA C511; Lead-Free; Check Seat Material Polymer
Series LF009 and LF009-FS Reduced Pressure Zone Assemblies are designed to protect potable water supplies in accordance with national plumbing codes and water authority requirements. These series are used in a variety of installations, including the prevention of health hazard cross-connections in piping systems or for containment at the service line entrance. They are also used in irrigation systems, boiler feed, water lines, and other installations requiring maximum protection. The body construction is fused with ArmorTek ™ coating technology to resist corrosion due to microbial induced corrosion (MIC) or exposed metal substrate. The series also features Lead Free construction to comply with Lead Free* installation requirements. Both series feature two in-line, independent check valves, captured springs, and replaceable check seats with an intermediate relief valve. Its compact modular design facilitates easy maintenance and assembly access. Sizes 1/4" to 1" shutoffs have tee handles. Series LF009-FS assemblies of sizes 1/2" to 3" include an integrated flood sensor to detect excessive water discharges from the relief valve. The flood sensor relays a signal that triggers notification to qualified service personnel who can take corrective action, thus avoiding the possibility of ruinous flooding and costly damage.
