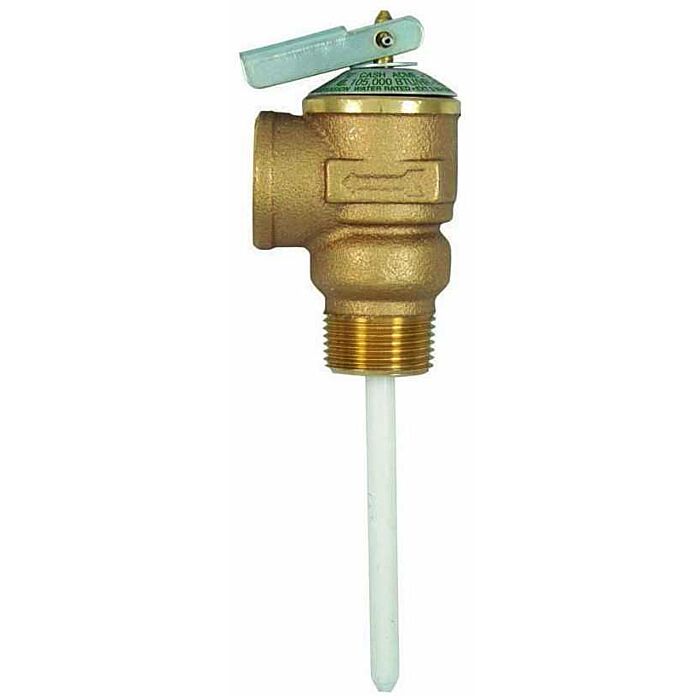

3/4" x 3/4", MPT x FPT, 2-5/8" L Shank, 150 PSI, Cast Bronze, Automatic, Reseating, Temperature and Pressure Relief Valve with Extended Inlet
Product Description
More Information
Incorporates an Inert Thermal Element Coating; Completely Automatic and Reseats after Temperature or Pressure Relief; Ideal for All Domestic Water Heater Applications; Every Valve is Tested for Performance Prior to Shipping
Temperature and Pressure Relief Valve; Inlet Size 3/4 Inch; Outlet Size 3/4 Inch; End Connection Male Threaded x Female Threaded; Body Material Cast Bronze; Spring Material Stainless Steel; Seat Material Silicone; Disc Material Silicone; Set Pressure Range 150 PSI; Temperature Rating 210 Deg F; Inclusions/Features Brass and Stainless Steel Internal Part; Application Residential, Domestic Water Heater, Storage Tank; Applicable Standard ANSI Z21.22/CSA 4.4, ASME IV; Capacity 500000 BTU/Hour; Shank Size 2-5/8 Inch
The NCLX features include a cast bronze body, brass and stainless steel internal parts, silicone seat disc and stainless steel spring. The NCLX incorporates an inert thermal element coating that provides effective isolation from mineral deposits (liming). The NCLX comes standard with a test lever. The valve is completely automatic and reseats after either temperature or pressure relief. The NCLX is available in male inlets and female outlets with several options in shank and element lengths.
