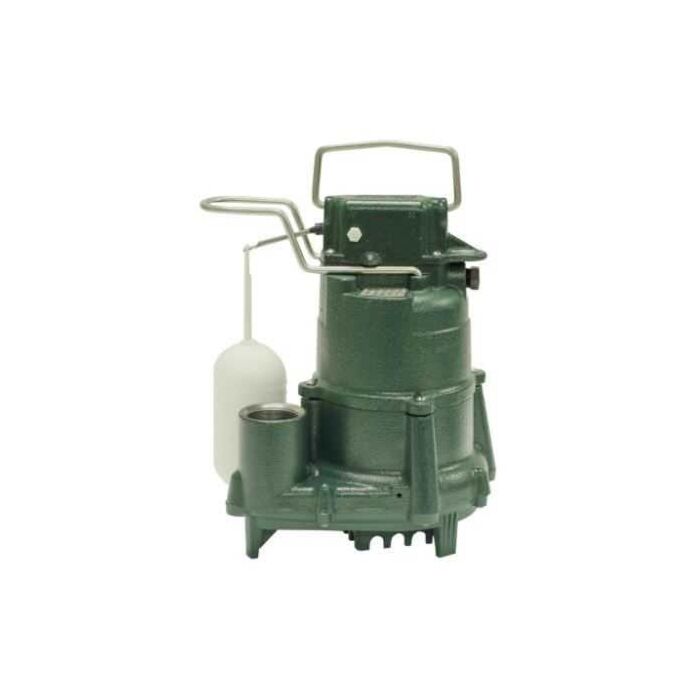

ZOELLER N-98 PUMP
Call for Availability
1-1/2" NPT Discharge, 1/2 HP, 115/230 VAC 60 Hz 1-Phase, 9.4 A, 72 GPM, 1725 RPM, 23' Discharge Head, 20' Cord, Powder Coated Epoxy Cast Iron, Piggyback Float Switch, Permanent Split Capacitor/Oil Filled/Auto-Reset Thermal Overload, Automatic/Non-Automatic, Submersible, Effluent/Sump Pump
Product Description
Specifications
| Casing Material | Cast Iron |
|---|---|
| Discharge Head | 23 Foot |
| Discharge Size | 1-1/2 Inch |
| End Connection | Threaded Outlet |
| Float Type | Variable Level |
| Flow Rate | 72 GPM |
| Housing Material | Powder Coated Epoxy, Cast Iron |
| Impeller Design | Non-Clogging Vortex |
| Impeller Material | Plastic |
| Input Supply Rating | 115 Volt AC 60 Hertz 1-Phase 9.4 Amp |
| Manufacturer | Zoeller Company (Zoeller Pump Company) |
| Manufacturer Name | Zoeller Company (Zoeller Pump Company) |
| Manufacturer Part Number | 98-0002 |
| Motor Type | Class B Insulation Oil-Filled Permanent Split Capacitor |
| Overall Dimensions | 7-7/8 Inch Width x 12-1/6 Inch Height |
| Power Cord Length | 15 Foot |
| Power Rating | 1/2 HP |
| Shaft Material | AISI 1215 Cold Rolled Steel |
| Shaft Seal Details | Carbon and Ceramic Mechanical Seal |
| Solid Size | 1/2 Inch (Spherical) |
| Speed Rating | 1725 RPM |
| Temperature Rating | 130 Deg F |
| UNSPSC | 40151512 |
| UPC | 053514029470 |
