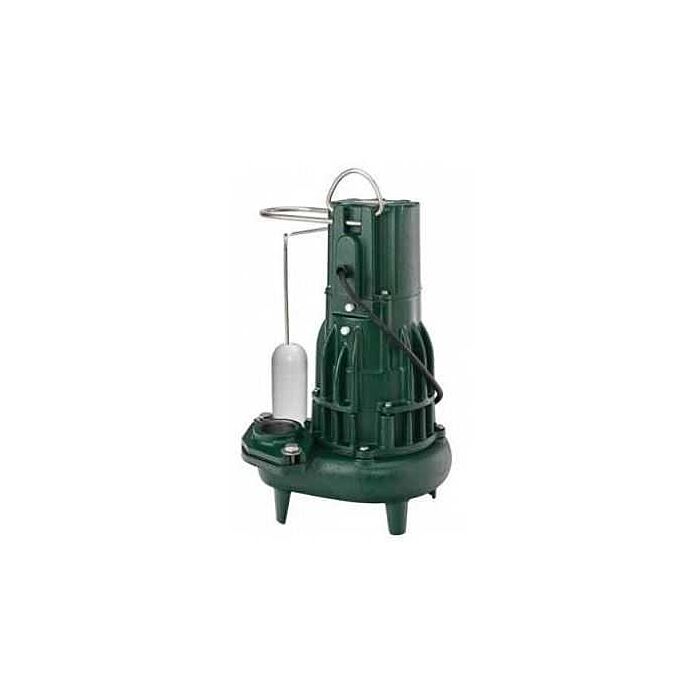

ZOELLER N282 PUMP
Call for Availability
2" or 3" FPT Flanged Vertical Discharge, 1/2 HP, 115/575 VAC 60 Hz 1 or 3-Phase, 10.3 A, 127 GPM, 1750 RPM, 26' Discharge Head, 15' Cord, Cast Iron, Permanent Split Capacitor/Oil Filled/Auto-Reset Thermal Overload, Single Seal, Automatic/Non-Automatic, Sewage Pump
Product Description
Specifications
| Discharge Head | 26 Foot |
|---|---|
| Discharge Size | 2 Inch or 3 Inch |
| End Connection | Flanged Outlet |
| Float Type | 2-Pole Single/Double Piggyback Variable Level |
| Flow Rate | 179 GPM |
| Housing Material | Powder Coated Epoxy Finished Cast Iron |
| Impeller Design | Non-Clogging Vortex |
| Impeller Material | Cast Iron |
| Input Supply Rating | 115 Volt AC at 60 Hertz 1-Phase 10.3 Amp |
| Manufacturer | Zoeller Company (Zoeller Pump Company) |
| Manufacturer Name | Zoeller Company (Zoeller Pump Company) |
| Manufacturer Part Number | 282-0002 |
| Motor Type | Permanent Split Capacitor, Oil-Filled |
| Overall Dimensions | 13-9/16 Inch Length x 18-13/16 Inch Height |
| Power Cord Length | 15 Foot |
| Power Rating | 1/2 HP |
| Series/Model | Series 282 |
| Shaft Material | 1117 Carbon Steel |
| Shaft Seal Details | Carbon-Ceramic Mechanical Switch |
| Solid Size | 2 Inch |
| Speed Rating | 1725 RPM |
| Temperature Rating | 130 Deg F |
| Type | Submersible |
| UNSPSC | 40151517 |
| UPC | 053514018351 |
