Corrosion Resistant, Powder Coated Epoxy Finish; No Sheet Metal Parts to Rust or Corrode; No Screens to Clog; Water Tight, Neoprene Square Ring Between Motor and Pump Housing; Solid, Buoyant, Polypropylene Float; Oil-Filled, Hermetically-Sealed, Automatic Reset Thermal Overload Protected Motor; Upper and Lower Sleeve Bearings Running in Bath of Oil; Entire Unit Pressure-Tested after Assembly; Water Tight and Dust-Tight; Permanently Oiled Bearings; Cast Iron Impeller; The Same Heat-Dissipating Cast Iron with Powder Coated Epoxy Finish, Providing Maximum Pumping Performance Under the Most Extreme Conditions; Non-Clogging Vortex Impeller Add up to a Long-Lasting, Trouble Free Product; Made in USA
Dewatering Sump Pump; Type Submersible, Shaded Pole, Automatic; Discharge Size 1-1/2 Inch; End Connection Threaded; Overall Dimensions 10-1/16 Inch Length x 7-7/8 Inch Width x 10-1/16 Inch Height; Float Type Electro Mechanical; Flow Rate 43 GPM; Discharge Head 19.25 Foot; Casing Material Cast Iron; Shaft Material AISI 1215 Cold Rolled Steel; Housing Material Cast Iron; Impeller Material Cast Iron; Impeller Design Non-Clogging Vortex; Warranty 5 Year; Shaft Seal Details Carbon and Ceramic Mechanical Seal; Solid Size 1/2 Inch Spherical; Power Cord Length 10 Foot; Power Rating 3/10 HP; Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 9.4 Amp; Speed Rating 1550 RPM; Temperature Rating 130 Deg F; Motor Type Class B Insulation Oil-Filled Hermetically Sealed Capacitor; Inclusions/Features Sleeve Bearing Upper/Lower, Neoprene Seal and Gasket, Stainless Steel Hardware, Cast Iron Base/Cap, Auto Reset Thermal Overload Motor Protection; Application Water Transfer, Sump System, Light Commercial, New Sump and Residential Construction; Applicable Standard UL 778, CSA (Canada and US), CSA C22.2 108, SSPMA; Motor Protection Auto Reset Thermal Overload; Cord Type 3-Wire, Grounded Plug; Auto On/Off Time 7-1/4 Inch, 3 Inch
These Premium sump pumps are designed with the very best materials and latest technology. Based on the 50 series sump pump, considered one of America's most popular sump pumps, this product offers advanced switch technology allowing for longer switch life.

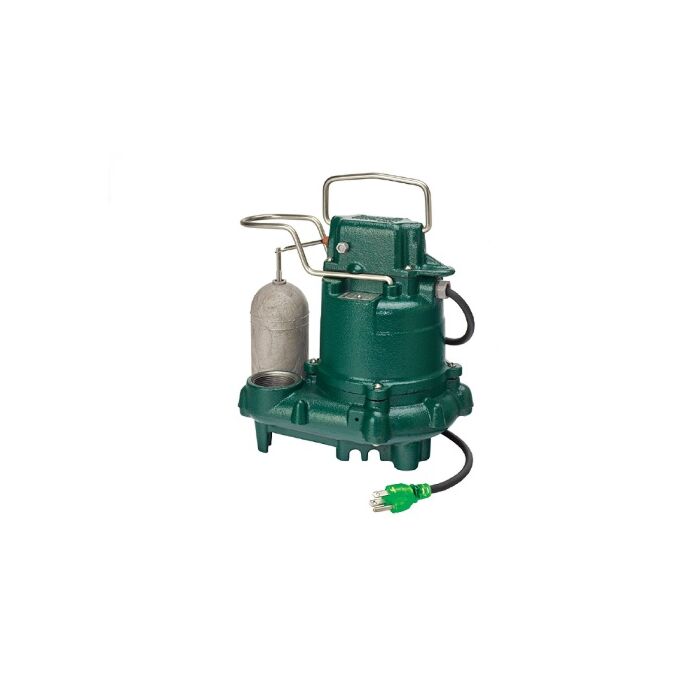

Premium Series Mighty-Mate®
Specifications
Specifications
Casing Material
Cast Iron
Discharge Head
19.25 Foot
Discharge Size
1-1/2 Inch
End Connection
Threaded
Float Type
Electro Mechanical
Flow Rate
43 GPM
Housing Material
Cast Iron
Impeller Design
Non-Clogging Vortex
Impeller Material
Cast Iron
Individual Item Weight
23.000 Pound
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 9.4 Amp
Manufacturer
Zoeller Company (Zoeller Pump Company)
Manufacturer Name
Zoeller Company (Zoeller Pump Company)
Manufacturer Part Number
63-0001
Motor Type
Class B Insulation Oil-Filled Hermetically Sealed Capacitor
Overall Dimensions
10-1/16 Inch Length x 7-7/8 Inch Width x 10-1/16 Inch Height
