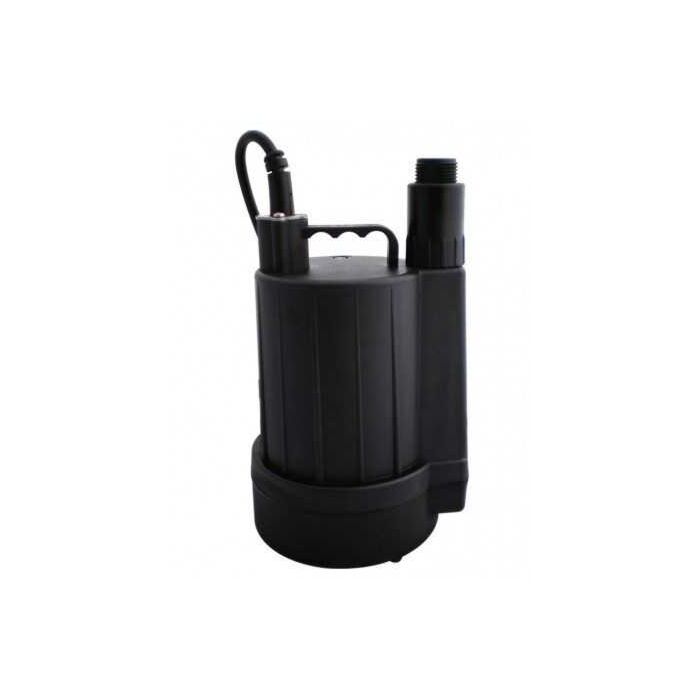

1-1/4 or 3/4" NPT Discharge, 115 VAC 60 Hz 1-Phase, 2.5 A, 1/4 HP, 0 to 1800 GPH, 20' L Cord, Plastic, Oil Free, Permanent Split Capacitor, Submersible, Utility Pump
Product Description
More Information
This Series of Utility Pumps is Designed for Use in Dewatering Applications and Can be Used to Transfer Groundwater; They are Extremely Useful for Transferring Unwanted Water Away from Building Foundations, Basements and Work Areas; Each Pump is Built Using Non-Corrodible Materials, Ensuring a Long Service Life; Because they are Both Durable and Lightweight; All Models are Hermetically Sealed to be Water Tight, Dust-Tight and Completely Submersible; Removable Screened Bottom for Easy Cleaning
Utility Pump; Type Submersible; Applicable Standard CSA, SSPMA; Discharge Size 1-1/4 Inch or 3/4 Inch; End Connection Threaded Outlet; Overall Dimensions 5.625 Inch Length x 5.2 Inch Width x 11-13/32 Inch Height; Flow Rate 0 to 1800 GPH; Discharge Head 5 to 20 Feet; Shaft Material 416 Stainless Steel; Housing Material Plastic; Impeller Material Plastic; Impeller Design Non-Clogging Vortex; Shaft Seal Details Carbon/Ceramic Mechanical Seal; Power Cord Length 20 Feet; Power Rating 1/4 HP; Input Supply Rating 115 Volt at 60 Hertz 1 Phase 2.5 Amp; Speed Rating 3450 RPM; Temperature Rating 104 Deg F; Motor Type Class B, Oil Free, Permanent Split Capacitor; Inclusions/Features Garden Hose Adapter, All Models are Hermetically Sealed to be Watertight, Dust-Tight and Completely Submersible, Removable Screened Bottom for Easy Cleaning; Application Dewatering, Transfer Groundwater; Operating Type Automatic; Thermal Load Protection Auto Reset Thermal Overload; Cord Type 3-Wire, Grounded Plug; Bearing Type Ball; Material Stainless Steel Hardware, NBR Gasket, Plastic Base; Weight 9 Lb
Floor Sucker®
Specifications
Specifications
Discharge Head
5 to 20 Feet
Discharge Size
1-1/4 Inch or 3/4 Inch
End Connection
Threaded Outlet
Flow Rate
0 to 1800 GPH
Housing Material
Plastic
Impeller Design
Non-Clogging Vortex
Impeller Material
Plastic
Input Supply Rating
115 Volt at 60 Hertz 1 Phase 2.5 Amp
Manufacturer
Zoeller Company (Zoeller Pump Company)
Manufacturer Name
Zoeller Company (Zoeller Pump Company)
Manufacturer Part Number
LM44
Motor Type
Class B, Oil Free, Permanent Split Capacitor
Overall Dimensions
5.625 Inch Length x 5.2 Inch Width x 11-13/32 Inch Height
