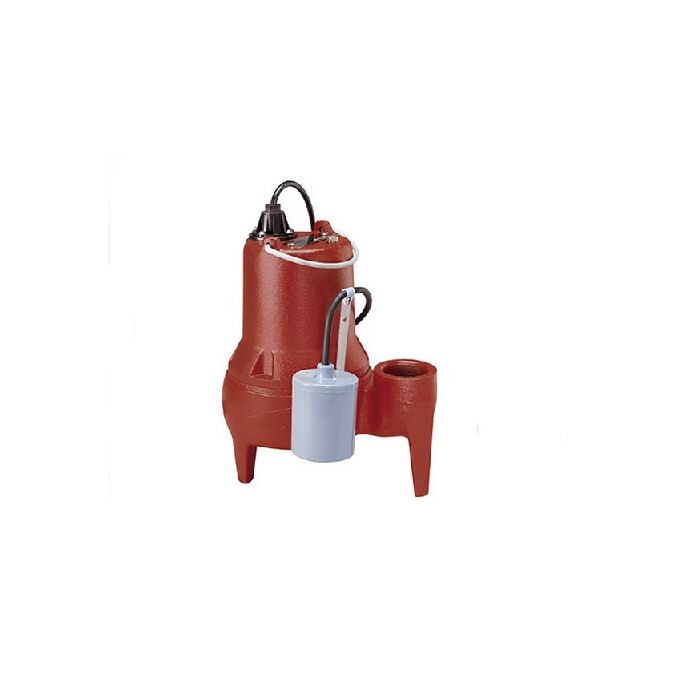

Heavy Cast Iron Construction; Oil-Filled, Thermally Protected Motor; Permanently Lubricated Ball Bearings; 2 Vane Corrosion Resistant *Hytrel® Impeller; All Stainless-Steel Fasteners and Rotor Shaft; LE50-Series Cast Iron Sewage Pump is a Commercial-Grade Workhorse for Residential and Light Commercial Applications; Its Efficient 1/2 HP Motor with Permanently Lubricated Bearings, Stainless Steel Fasteners and Quick-Connect Power Cord Design Make this a Favorite Choice Among Professionals
Sewage Pump; Type Submersible, Automatic; Discharge Size 2 Inch; End Connection Threaded x Threaded; Overall Dimensions 10.9 Inch Length x 7.5 Inch Width x 12 Inch Height; Float Type Adjustable, Wide Angle, Piggyback; Flow Rate 141 GPM at 5 Foot; Discharge Head 24 Foot; Shaft Material Stainless Steel; Housing Material Class 25 Cast Iron; Impeller Material Thermoplastic Elastomer; Impeller Design 2-Vane, Semi-Open; Warranty 3 Year; Shaft Seal Details Unitized Ceramic Carbon Mechanical Seal; Solid Size 2 Inch; Power Cord Length 10 Foot; Power Rating 1/2 HP; Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 12 Amp; Speed Rating 1725 RPM; Temperature Rating 140 Deg F (Liquid), 266 Deg F (Stator), 221 Deg F (Thermal Overload); Motor Type Oil Filled Permanent Split Capacitor, Class B Insulation and NEMA B Design; Inclusions/Features Gray Class 25 Cast Iron Volute/Leg/Housing, Stainless and Brass Fastener; Applicable Standard CSA (Canada and US), SSPMA, ISO 9001; Finish Powder Coated; Locked Rotor Current Rating 22.5 Amp; Stator Winding Class B
Specifications
Specifications
Discharge Head
24 Foot
Discharge Size
2 Inch
End Connection
Threaded X Threaded
Float Type
Adjustable, Wide Angle, Piggyback
Flow Rate
141 GPM at 5 Foot
Housing Material
Class 25 Cast Iron
Impeller Design
2-Vane, Semi-Open
Impeller Material
Thermoplastic Elastomer
Individual Item Weight
43.000 Pound
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 12 Amp
Manufacturer
Liberty Pumps
Manufacturer Name
Liberty Pumps
Manufacturer Part Number
LE51A
Motor Type
Oil Filled Permanent Split Capacitor, Class B Insulation and NEMA B Design
Overall Dimensions
10.9 Inch Length x 7.5 Inch Width x 12 Inch Height
Power Cord Length
10 Foot
Power Rating
1/2 HP
Series/Model
LE50
Shaft Material
Stainless Steel
Shaft Seal Details
Unitized Ceramic Carbon Mechanical Seal
Solid Size
2 Inch
Speed Rating
1725 RPM
Temperature Rating
140 Deg F (Liquid), 266 Deg F (Stator), 221 Deg F (Thermal Overload)
