• Corrosion Resistant, Vortex Style Impeller Made of High Temperature Engineered Polymer
• All Stainless-Steel Fasteners and Rotor Shaft
• Quick-Connect 10' Standard Power Cord Allows Replacement of Cord in Seconds without Breaking Seals to Motor""

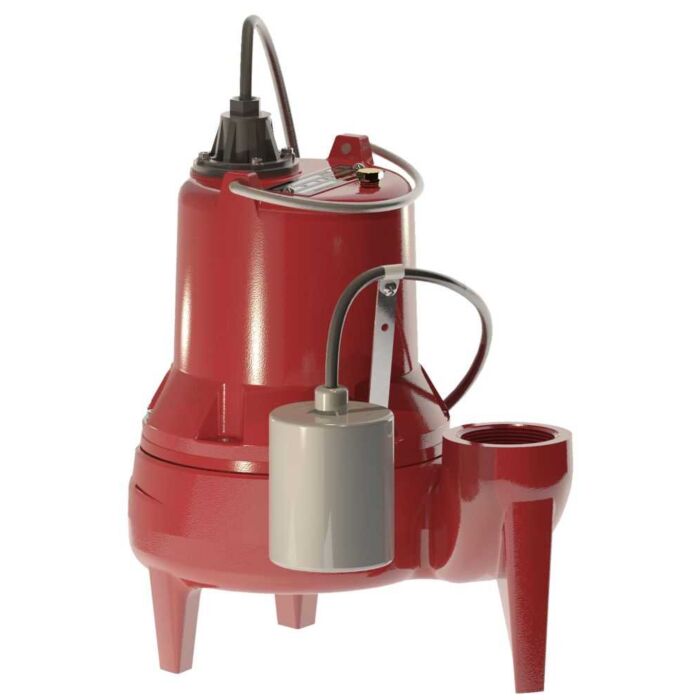

• Sewage Pump • Type Submersible • Discharge Size 2 Inch • End Connection Female Threaded • Overall Dimensions 14 Inch Height • Float Type Automatic, Adjustable, Wide Angle, Piggyback • Flow Rate 125 GPM at 5 Foot • Discharge Head 20 Foot • Shaft Material Stainless Steel • Housing Material Class 25 Powder Coat Painted Cast Iron • Impeller Material Engineered Polymer • Impeller Design Vortex • Warranty 3 Year • Shaft Seal Details Unitized Ceramic Carbon Mechanical Seal • Solid Size 2 Inch • Power Cord Length 10 Foot • Power Rating 4/10 HP • Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 12 Amp • Speed Rating 1725 RPM • Temperature Rating 140 Deg F • Motor Type NEMA B Insulated Class B, Oil Filled, Permanent Split Capacitor, Thermal Overload • Applicable Standard CSA (Canada and US), SSPMA, ISO 9001 • Cord Type SJTW • Insulation Class B
• Cord Type SJTW • Insulation Class B
Specifications
Specifications
Discharge Head
20 Foot
Discharge Size
2 Inch
End Connection
Female Threaded
Float Type
Automatic, Adjustable, Wide Angle, Piggyback
Flow Rate
125 GPM at 5 Foot
Housing Material
Class 25 Powder Coat Painted Cast Iron
Impeller Design
Vortex
Impeller Material
Engineered Polymer
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 12 Amp
Manufacturer
Liberty Pumps
Manufacturer Name
Liberty Pumps
Manufacturer Part Number
LE41A
Motor Type
NEMA B Insulated Class B, Oil Filled, Permanent Split Capacitor, Thermal Overload
