MPT x MPT, 120 VAC 60 Hz 1-Phase, 0.54 A, 44 W, 150 PSI, 11 GPM, Composite, Compact, Hot Water Recirculation System
Product Description
More Information
Quick and easy installation - Ideal for retrofits; Uses existing plumbing; Fully automatic - No programming needed; Learns hot water usage patterns; High-efficiency ECM motor uses up to 85% less electricity; SureStart® is your no-callback safety net; It automatically purges air and unblocks the pump to keep it trouble-free; No one else has this feature; Lead-Free
Hot Water Recirculation System; Type High Efficiency, Automatic; Suction Size 1/2 Inch; End Connection 1/2 Inch Male Threaded; Overall Dimensions 5-1/8 Inch Length x 5-1/2 Inch Width x 5-1/8 Inch Height; Flow Rate 11 GPM; Discharge Head 13 Foot; Casing Material Composite; Shaft Material Ceramic; Impeller Material Composite; Power Rating 44 Watt; Input Supply Rating 120 Volt AC 60 Hertz 1-Phase, 0.54 Amp; Speed Rating 1440 to 3720 RPM; Temperature Rating 36 to 203 Deg F; Pressure Rating 150 PSI; Motor Type ECM, Permanent Magnet, Thermally Protected; Inclusions/Features Stainless Steel Braided Flex Hose, 3/4 Inch Male and Female Union; Application Retrofit, Plumbing; Applicable Standard UL (Canada and US), NSF 61/372, FCC, ISO; Lead-Free; Material Composite (Cartridge), Carbon (Bearing), Ceramic (Thrust Bearing), EPDM (O-Ring and Gasket)

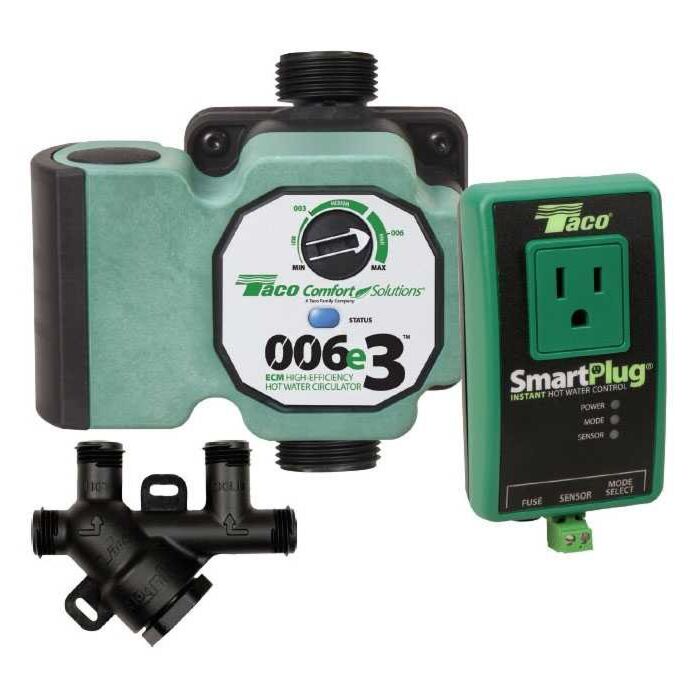

Do you want instant hot water without paying for a major renovation? Taco's Hot-LinkPlus-e instant hot water system combines the easy-to-install Hot-Link® Valve with the 006e3® hot water circulation pump and the award winning SmartPlug Instant Hot Water Control®! The Hot-LinkPlus-e provides hot water on demand while maximizing energy savings. Using existing plumbing with a tank water heater, no dedicated hot water return line is needed.
Hot-LinkPlus-e®
Specifications
Specifications
Casing Material
Composite
Discharge Head
13 Foot
End Connection
1/2 Inch Male Threaded
Flow Rate
11 GPM
Impeller Material
Composite
Individual Item Weight
3.500 Pound
Input Supply Rating
120 Volt AC 60 Hertz 1-Phase, 0.54 Amp
Manufacturer
Taco Family of Companies (Taco Comfort Solutions)
Manufacturer Name
Taco Family of Companies (Taco Comfort Solutions)
Manufacturer Part Number
HLPE-1
Motor Type
ECM, Permanent Magnet, Thermally Protected
Overall Dimensions
5-1/8 Inch Length x 5-1/2 Inch Width x 5-1/8 Inch Height
