2" x 2", FPT x FPT, 10' Power Cord, 1/2 HP, 115 VAC 60 Hz 1-Phase, 7.3 A Full Load, 48 GPM, 3450 RPM, Deep Finned Powder Coated Aluminum Housing, High Head/High Temperature/Automatic Switch, Drain Pump
Product Description
More Information
Factory Pre-Assembled; Fully Automatic Operation; QuickTree Technology Allows Quick Inspection and Removal of Float Switch without Disconnecting the Plumbing; Integrally Molded Rubber Gaskets for a Superior Gas tight Seal; Maintenance Free, Permanently Lubricated Sealed Bearings
Drain Pump; Type Automatic; Inlet Size 2 Inch; Discharge Size 2 Inch; End Connection Female Threaded x Female Threaded; Basin Capacity 5.5 Gallon; Basin Dimensions 13-3/4 Inch Width x 14-1/8 Inch Height; Flow Rate 58 GPM at 5 Foot; Discharge Head 34 Foot; Shaft Material Stainless Steel; Basin Material Polyolefin; Housing Material Polypropylene; Impeller Material Engineered Polymer; Impeller Design Vortex; Warranty 3 Year; Shaft Seal Details Engineered Double Lip with Stainless Springs; Solid Size 3/8 Inch; Vent Connection 2 Inch Female Threaded; Sealed Basin Yes; Power Cord Length 10 Foot; Power Rating 1/2 HP; Input Supply Rating 115 Volt AC at 60 Hertz 1-Phase 7.3 Amp; Speed Rating 3450 RPM; Temperature Rating 180 Deg F; Motor Type Oil Filled, Hermetically Sealed, Thermal Overload Protection; Inclusions/Features Gasket, Motor, Basin, Sealed Bearings, QuickTree Technology; Application Bar Sink, Laundry Tray, Dehumidifier, Utility Sink and Gray Wastewater Drainage Below Gravity Line; Applicable Standard CSA (Canada and US), SSPMA, ISO 9001; Power Cord Type SJTOOW

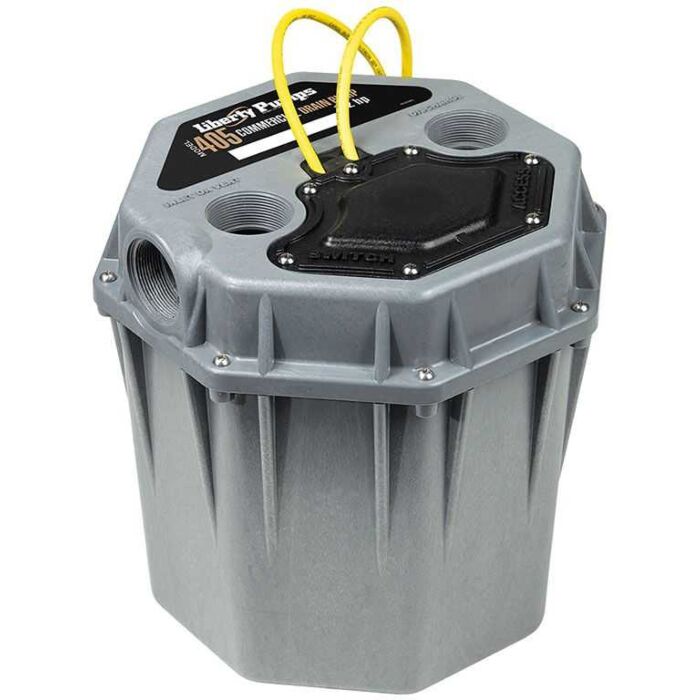

Liberty's 405 is a specially designed commercial drain pump built to perform in High head, high temperature situations. Our QuickTree® Technology provides a separate access cover for easy switch inspection. For gray wastewater applications, the 405 is perfect for laundry trays, multi-compartment sinks, bar sinks, utility sinks, dishwashers and allows you the freedom to install fixtures where gravity drain lines are not available. The system arrives fully assembled and ready to install. Alarm models available.
