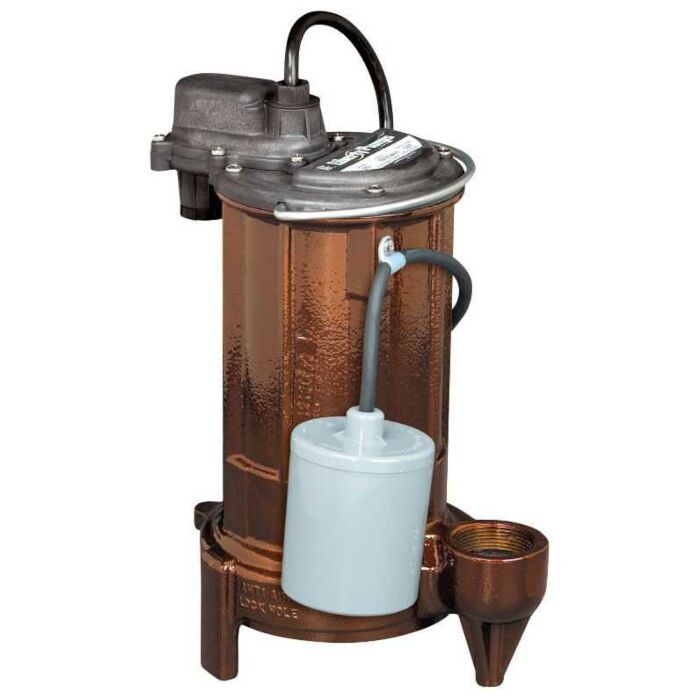

Liberty Pumps Unique, One-Piece “Uni-Body” Casting; Quick-Connect 10' Standard Power Cord Allows Replacement of Cord in Seconds without Breaking Seals to Motor; Permanently Lubricated Upper and Lower Bearings; Oil-Filled, Hermetically Sealed Motor with Thermal Overload Protection; Stainless-Steel Removable Bottom Screen; Stainless-Steel Rotor Shaft
Sump Pump; Type Submersible, Automatic; Discharge Size 1-1/2 Inch; Overall Dimensions 9.5 Inch Length x 6.4 Inch Width x 13.2 Inch Height; Float Type Integral Vertical Magnetic, Piggy Back; Flow Rate 62 GPM at 5 Foot; Discharge Head 37 Foot; Casing Material Class 25 Cast Iron; Shaft Material Stainless Steel; Housing Material Class 25 Cast Iron; Impeller Material Engineered Polymer; Impeller Design Vortex; Warranty 3 Year; Shaft Seal Details Unitized Ceramic Carbon; Solid Size 3/4 Inch; Power Cord Length 10 Foot; Power Rating 1/2 HP; Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 8/23 Amp; Speed Rating 3450 RPM; Temperature Rating 140 Deg F (Liquid), 266 Deg F (Stator), 221 Deg F (Thermal Overload); Motor Type Oil Filled, Hermetically Sealed, Thermally Protected and Permanently Lubricated, Permanent Split Capacitor; Inclusions/Features Stainless Steel Bottom Removable Screen, Stainless Steel Fastener; Application Commercial, On-Site Waste Water System, Liquid Waste Transfer; Applicable Standard CSA (Canada and US), SSPMA, ISO 9001; Finish Epoxy Powder Coated; Sump Diameter 10 Inch; Current Rating 23 Amp (Locked Rotor); Power Cord Type SJTW/SJTOOW
