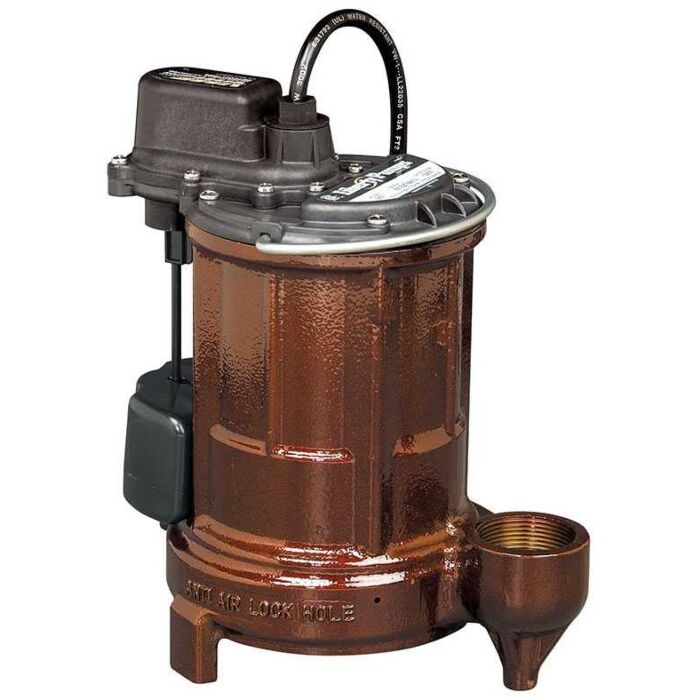

Unique 1-Piece Cast Body Eliminates Motor Housing Seal Ring; Durable Epoxy Powder Coat Finish; Vortex Style Impeller; Permanently Sealed and Lubricated Bearings; Quick-Connect 10 Foot Standard Power Cord; Heavy-Duty Vertical Magnetic Float on Vertical Float Switch Models; 3-Year Warranty
Submersible Sump/Effluent Pump; Type 1-Piece; Discharge Size 1-1/2 Inch; Overall Dimensions 9.5 Inch Length x 6.5 Inch Width x 10.7 Inch Height; Float Type Vertical Magnetic; Flow Rate 44 GPM; Discharge Head 23 Foot; Casing Material Epoxy Powder Coated Class 25 Cast Iron; Shaft Material 300/400 Stainless Steel; Housing Material Epoxy Powder Coated Class 25 Cast Iron; Impeller Material Engineered Polymer; Impeller Design Vortex; Warranty 3 Year; Shaft Seal Details Engineered Double Lip Seal; Solid Size 1/2 Inch; Power Cord Length 10 Foot; Power Rating 1/3 HP; Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 5.2 Amp; Speed Rating 3450 RPM; Temperature Rating 140 Deg F; Motor Type Thermally Protected, Permanent Split Capacitor; Inclusions/Features Upper and Lower Ball Bearing, Buna-N O-Ring, Stainless Steel Spring, Vertical Magnetic Float Switch; Applicable Standard CSA (Canada and US), ISO 9001, SSPMA; Current Rating 8 Amp (Locked Rotor)
Specifications
Specifications
Casing Material
Epoxy Powder Coated Class 25 Cast Iron
Discharge Head
23 Foot
Discharge Size
1-1/2 Inch
Float Type
Vertical Magnetic
Flow Rate
44 GPM
Housing Material
Epoxy Powder Coated Class 25 Cast Iron
Impeller Design
Vortex
Impeller Material
Engineered Polymer
Individual Item Weight
20.000 Pound
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 5.2 Amp
Manufacturer
Liberty Pumps
Manufacturer Name
Liberty Pumps
Manufacturer Part Number
257
Motor Type
Thermally Protected, Permanent Split Capacitor
Overall Dimensions
9.5 Inch Length x 6.5 Inch Width x 10.7 Inch Height
