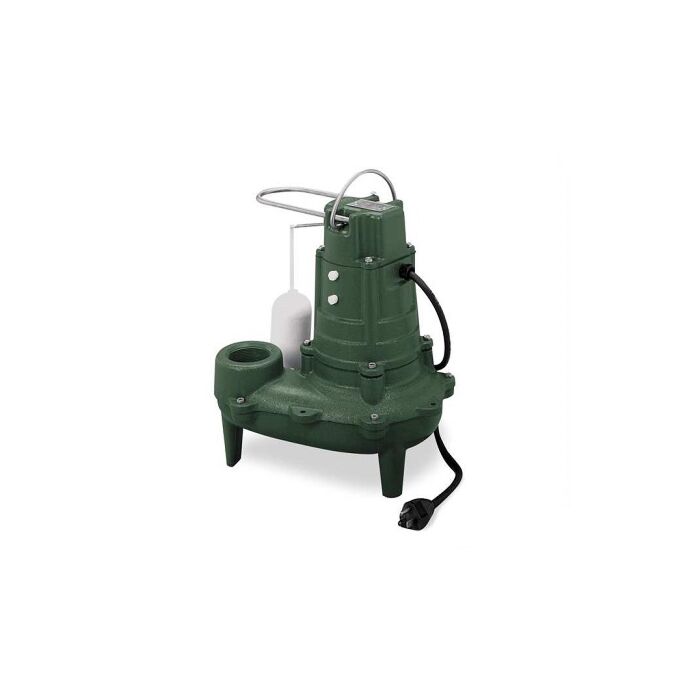

2" NPT Discharge, 1/2 HP, 115 to 460 VAC 60 Hz 1 or 3-Phase, 9.4 A, 128 GPM, 1725 RPM, 21.5' Discharge Head, 10' Cord, Cast Iron Housing, Permanent Split Capacitor/Oil Filled/Auto-Reset Thermal Overload, Sewage Pump
Product Description
More Information
Durable Cast Construction; Non-Clogging Vortex Impeller Design; Not Affected by Materials Normally Found in Drainage and Sewage Pumps; Oil-Filled, Hermetically-Sealed Motor; Oil Lubricated Bearings; Corrosion Resistant Powder Coated Epoxy Finish; Completely Submersible; Water Tight and Dust Tight; The Heat-Dissipating Cast Iron Body with Powder Coated Epoxy Finish Provides Maximum Pumping Performance Under the Most Extreme Conditions; Made in USA
Sewage Pump; Type Single Seal, Auto Mode, Submersible; Discharge Size 2 Inch; End Connection Threaded; Overall Dimensions 13 Inch Length x 11 Inch Width x 14-5/16 Inch Height; Float Type Mechanical, Piggyback Variable Level; Flow Rate 128 GPM; Discharge Head 21.5 Foot; Shaft Material AISI 1215 Cold Rolled Steel; Housing Material Cast Iron; Impeller Material Engineered Plastic with Metal Insert; Impeller Design Non-Clogging Vortex; Warranty 3 Year; Shaft Seal Details Carbon and Ceramic; Solid Size 2 Inch Spherical; Power Cord Length 10 Foot; Power Rating 1/2 HP; Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 10.4 Amp; Speed Rating 1725 RPM; Temperature Rating 130 Deg F; Motor Type Class B Insulation Oil-Filled Hermetically Sealed Permanent Split Capacitor; Inclusions/Features Upper and Lower Sleeve Bearing, Stainless Steel Hardware, Neoprene Gasket, Cast Iron Base/Motor Housing/Cap; Application Residential and Light Commercial Sewage and Dewatering, Wastewater/Lift Station, Effluent System; Applicable Standard UL 778, CSA (Canada and US), CSA C22.2 108, SSPMA; Auto On/Off Point 12 Inch, 4 Inch; Basin Dimension 18 Inch Width x 30 Inch Height (Simplex), 30 Inch Width x 36 Inch Height (Duplex)
Considered one of America's most popular sewage ejectors, this robust family of pumps is known for reliability, durability and performance. These pumps are industry-proven, built of cast iron with stainless steel hardware. Comes with an integral, 2-pole, snap-action float switch. The heat-dissipating cast iron body with powder coated epoxy finish provides maximum pumping performance under the most extreme conditions. With a cool run design, the hermetically sealed, oil-filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.
Waste-Mate Series
Specifications
Specifications
Discharge Head
21.5 Foot
Discharge Size
2 Inch
End Connection
Threaded
Float Type
Mechanical, Piggyback Variable Level
Flow Rate
128 GPM
Housing Material
Cast Iron
Impeller Design
Non-Clogging Vortex
Impeller Material
Engineered Plastic with Metal Insert
Individual Item Weight
47.500 Pound
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 10.4 Amp
Manufacturer
Zoeller Company (Zoeller Pump Company)
Manufacturer Name
Zoeller Company (Zoeller Pump Company)
Manufacturer Part Number
267-0001
Motor Type
Class B Insulation, Oil Filled, Hermetically Sealed, Permanent Split Capacitor, Automatic Reset Thermally Overload Protected
Overall Dimensions
13 Inch Length x 11 Inch Width x 14-5/16 Inch Height
