Durable, Cast Iron Construction; Corrosion Resistant, Powder Coated Epoxy Finish; No Sheet Metal Parts to Rust or Corrode; Permanent Split Capacitor Motor, Oil-Filled and Hermetically-Sealed, Automatic Reset Thermal Overload Protection; Upper and Lower Oil-Fed Cast Iron Bearings; Entire Unit Pressure-Tested after Assembly; Water Tight, Neoprene Square Ring Between Motor and Pump Housing; Made in USA
Effluent/Sump Pump; Type Submersible, Automatic; Discharge Size 1-1/2 Inch; End Connection Threaded; Overall Dimensions 10-1/8 Inch Length x 7-7/8 Inch Width x 12-1/16 Inch Height; Float Type Integral Mechanical; Flow Rate 72 GPM; Discharge Head 23 Foot; Casing Material Cast Iron; Shaft Material AISI 1215 Cold Rolled Steel; Housing Material Cast Iron; Impeller Material Engineered Plastic; Impeller Design Non-Clogging Vortex; Shaft Seal Details Carbon and Ceramic Mechanical Seal; Solid Size 1/2 Inch Spherical; Power Cord Length 15 Foot; Power Rating 1/2 HP; Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 9.7 Amp; Speed Rating 1725 RPM; Temperature Rating 130 Deg F; Motor Type Class B Insulation Oil-Filled Hermetically Sealed Permanent Split Capacitor; Options Pump Stand; Inclusions/Features Upper and Lower Oil-Filled Cast Iron Bearing, Stainless Steel Screw, Guard, Handle, Arm and Seal Assembly, Duplex Control Panel, Auto Reset Thermal Overload Motor Protection; Application Water Transfer, Sump and Effluent System, Light Commercial, New Sump and Residential Construction; Applicable Standard UL 778, CSA (Canada and US), CSA C22.2 108, SSPMA; Motor Protection Auto Reset Thermal Overload; Auto On/Off Time 9-1/2 Inch, 3 Inch

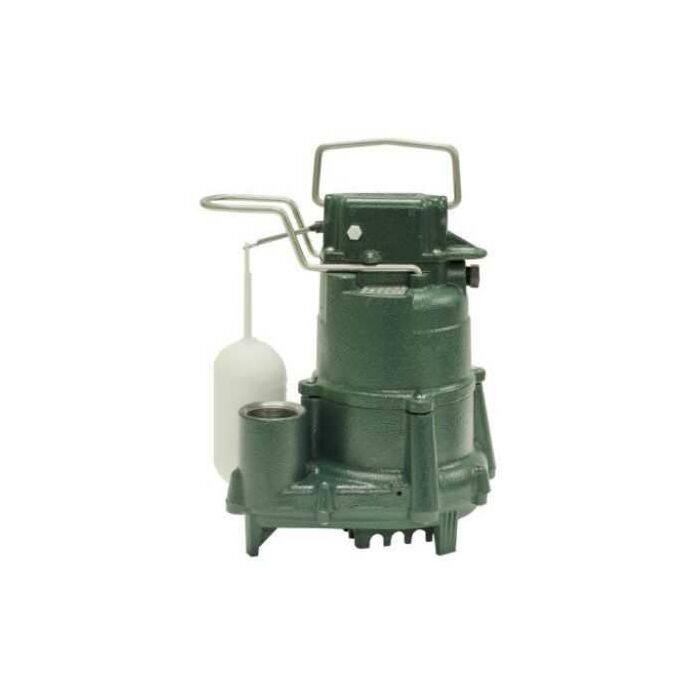

Considered one of America's most popular sump pumps. This robust family of sump pumps is known for reliability, durability and performance. Available with an intergral, 2-pole, snapaction float switch. The heat-dissipating cast iron body with powder coated epoxy finish provides maximum pumping performance under the most extreme conditions. With Zoeller's cool run design, the hermetically sealed, oil-filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.
Flow-Mate Series
Specifications
Specifications
Casing Material
Cast Iron
Discharge Head
23 Foot
Discharge Size
1-1/2 Inch
End Connection
Threaded
Float Type
Integral Mechanical
Flow Rate
72 GPM
Housing Material
Cast Iron
Impeller Design
Non-Clogging Vortex
Impeller Material
Engineered Plastic
Individual Item Weight
36.000 Pound
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 9.7 Amp
Manufacturer
Zoeller Company (Zoeller Pump Company)
Manufacturer Name
Zoeller Company (Zoeller Pump Company)
Manufacturer Part Number
98-0001
Motor Type
Class B Insulation, Oil Filled, Hermetically Sealed, Permanent Split Capacitor, Automatic Reset Thermally Overload Protected
Overall Dimensions
10-1/8 Inch Length x 7-7/8 Inch Width x 12-1/16 Inch Height
