Professional Grade, Corrosion Resistant, Powder Coated Epoxy Finish; No Sheet Metal Parts to Rust or Corrode; No Screens to Clog; Water Tight, Neoprene Square Ring Between Motor and Pump Housing; Solid, Buoyant, Polypropylene Float; Oil-Filled and Hermetically-Sealed, Automatic Reset Thermal Overload Protected Motor; Upper and Lower Sleeve Bearings Running in Bath of Oil; Entire Unit Pressure Tested after Assembly; Water Tight and Dust-Tight
Effluent/Dewatering Sump Pump; Type Submersible, Shaded Pole, Automatic; Discharge Size 1-1/2 Inch; End Connection Threaded; Overall Dimensions 10-1/16 Inch Length x 7-7/8 Inch Width x 10-1/16 Inch Height; Float Type Piggyback Variable Level; Flow Rate 43 GPM; Discharge Head 19.25 Foot; Casing Material Cast Iron; Shaft Material AISI 1215 Cold Rolled Steel; Housing Material Cast Iron; Impeller Material Plastic/Cast Iron/Bronze; Impeller Design Non-Clogging Vortex; Shaft Seal Details Carbon and Ceramic Mechanical Seal; Solid Size 1/2 Inch Spherical; Power Cord Length 9 Foot; Power Rating 3/10 HP; Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 9.7 Amp; Speed Rating 1550 RPM; Temperature Rating 130 Deg F; Motor Type Class B Insulation Oil-Filled Hermetically Sealed Capacitor; Options Pump Stand; Inclusions/Features Neoprene Gasket, Sleeve Bearing Upper/Lower, Cast Iron/Bronze/Engineered Thermoplastic Base, Cast Iron/Bronze Cap, Simplex Control Panel, Single Pole, Auto Reset Thermal Overload Motor Protection; Application Water Transfer, Sump and Effluent System, Light Commercial, New Sump and Residential Construction; Applicable Standard UL 778, CSA (Canada and US), CSA C22.2 108, SSPMA; Motor Protection Auto Reset Thermal Overload; Cord Type 3-Wire, Plug; Auto On/Off Point 7-1/4 Inch, 3 Inch

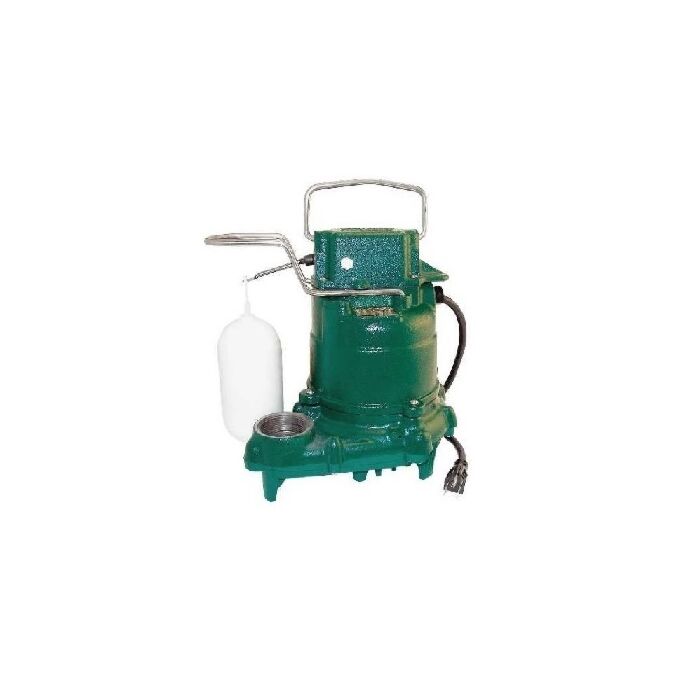

Considered one of America's most popular sump pumps. This robust family of sump pumps is known for reliability, durability and performance. Available with an intergral, 2-pole, snapaction float switch. The heat-dissipating cast iron body with powder coated epoxy finish provides maximum pumping performance under the most extreme conditions. With Zoeller's cool run design, the hermetically sealed, oil-filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.
Mighty-Mate® Series
Specifications
Specifications
Casing Material
Cast Iron
Discharge Head
19.25 Foot
Discharge Size
1-1/2 Inch
End Connection
Threaded
Float Type
Piggyback Variable Level
Flow Rate
43 GPM
Housing Material
Cast Iron
Impeller Design
Non-Clogging Vortex
Impeller Material
Plastic/Cast Iron/Bronze
Individual Item Weight
23.000 Pound
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 9.7 Amp
Manufacturer
Zoeller Company (Zoeller Pump Company)
Manufacturer Name
Zoeller Company (Zoeller Pump Company)
Manufacturer Part Number
53-0001
Motor Type
Class B Insulation Oil-Filled Hermetically Sealed Capacitor
Overall Dimensions
10-1/16 Inch Length x 7-7/8 Inch Width x 10-1/16 Inch Height
