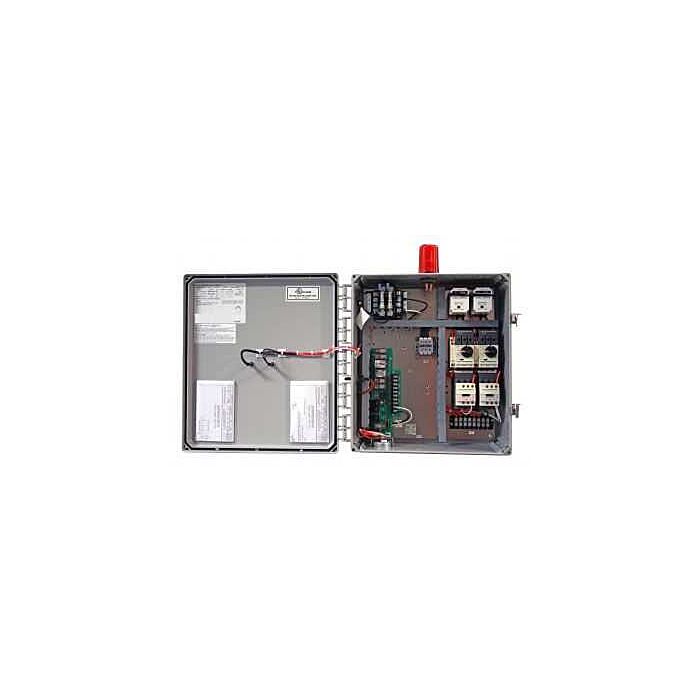

10" x 6" x 12", NEMA 4X, Simplex, Control Panel for 200/230/460 VAC 3-Phase 9 to 14 A 7-1/2 HP G6221/G7112 Standard Solid Handling/Grinder Pump
Product Description
More Information
Grinder Pump Control Panel; Type Simplex; Overall Dimensions 10 Inch Length x 6 Inch Width x 12 Inch Height; Fuse Clip Size 9 to 14 Amp; Voltage Rating 200/230/460 Volt AC; Frequency Rating 60 Hertz; Power Rating 2 HP; Number of Phases 3; Enclosure Type NEMA 4X; Used On Item Standard Solid Handling Grinder Pump; Used On Model/Brand F841, F841, J842, F842; Inclusions/Features Input Power/Float Switch Terminal Block, Ground Lug, Control Side Fuse, Control On/Off Switch, Lockable Hasp, HOA Switch, IEC Rated Motor Contactor, 120 Volt Control Circuit or Transformer, Pump Disconnect and Motor Overload Protection, External High Water Alarm Light, Audible High Water Alarm Horn, High Water Alarm Dry Contact, Alarm Test and Silence Switch (Externally Mounted), Green Pump Run Light, Float Status Indicator Light, Seal Fail Relay with Indication Thermal Cut-out Circuit; Weight 18 Pound; Applicable Standard UL (Canada and US), CSA (Canada and US); Enclosure Material Thermoplastic
