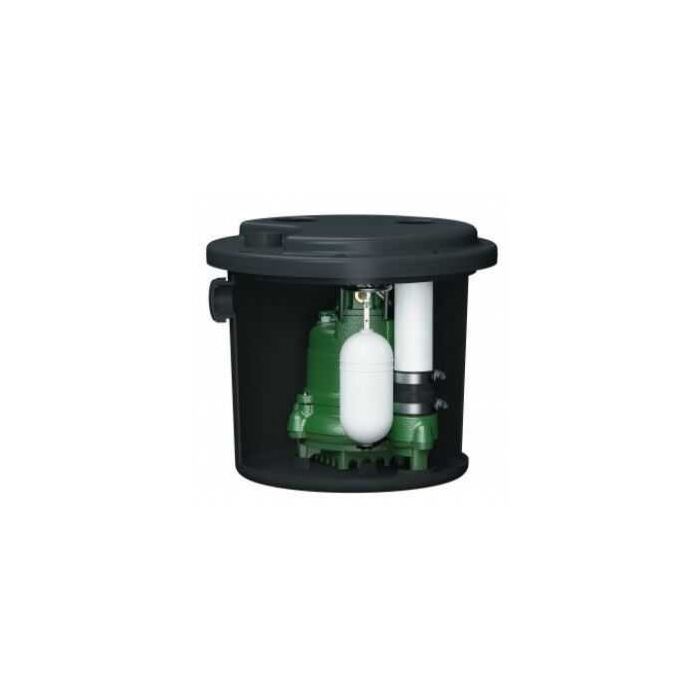

1-1/2" NPT, 3/10 HP, 115 VAC 60 Hz 1-Phase, 9.7 A, 72 GPM, 1550 RPM, 23' Head, 9' Cord, Glass Filled Polypropylene, Single Seal, High Head, Automatic, Drain Pump
Product Description
More Information
1/2 Inch (12 Millimeter) Solids-Passing Capacity; Temperature Rated for 130 Deg F (54 Deg C); Includes 1-1/4 Inch or 1-1/2 Inch PVC Slip X Slip Union Check Valve; Passes Laundry Lint; Automatic, Float Operated Mechanical Switch; Stainless Steel Screws, Guard, Handle and Switch Arm; Non-Clogging Vortex Impeller
Drain Pump; Type Single Seal, Auto Mode; Discharge Size 1-1/2 Inch; End Connection Threaded; Basin Capacity 5 Gallon; Basin Dimensions 14-1/2 Inch Top Diameter x 11-3/4 Inch Bottom Diameter x 12-1/2 Inch Height; Flow Rate 19 to 43 GPM; Discharge Head 19.25 Foot; Casing Material Polypropylene; Shaft Material Polypropylene; Basin Material Polypropylene; Housing Material Polypropylene; Impeller Design Non-Clogging Vortex; Shaft Seal Details Tank Cord Seal; Solid Size 1/2 Inch; Vent Connection 2 Inch Threaded; Sealed Basin Yes; Power Cord Length 9 Foot; Power Rating 1/3 HP; Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 9.7 Amp; Speed Rating 1550 RPM; Temperature Rating 130 Deg F; Options Side/Top Inlet; Inclusions/Features Passes Laundry Lint, Automatic, Float-Operated Mechanical Switch, 3-Wire Cord and Plug, Stainless Steel Screw, Guard, Handle and Switch Arm, Glass Filled Polypropylene Base with Built-In Strainer, Automatic Pump with Tank Cord Seal and All Hardware for Easy Assembly; Application Air Conditioning Condensate, Dehumidifier, Laundry Tray Pump, Bathroom Sink, Wet Bar Sink; Applicable Standard ASME A112.3.4/CSA B45.9, CUPC, SSPMA, UL
These are our most versatile water collection systems. No need to dig a sump pit or re-route plumbing drain lines. This compact system includes everything you need to remove water from areas without gravity drains. Excellent for bar sinks, laundry trays or condensate removal. There are no inlet filters to clean and easy compression fittings make for quick and trouble-free installations. As an added bonus, the P-trap can be located inside the tank if necessary.
Specifications
Specifications
Basin Capacity
5 Gallon
Basin Dimensions
14-1/2 Inch Top Diameter x 11-3/4 Inch Bottom Diameter x 12-1/2 Inch Height
