Durable, Cast Iron Construction; Corrosion Resistant, Powder Coated Epoxy Finish; Oil-Filled, Hermetically-Sealed, Automatic Reset Thermal Overload Protection Motor; Upper and Lower Sleeve Bearings Running in Bath of Oil; Made in USA
Sewage/Effluent Pump; Type Single Seal, Auto Mode, Submersible; Discharge Size 2 Inch; End Connection Threaded; Overall Dimensions 13-1/7 Inch Length x 11-1/3 Inch Width x 14-3/4 Inch Height; Float Type Mechanical, Piggyback Variable Level; Flow Rate 90 GPM; Discharge Head 18 Foot; Shaft Material A151 1215 Steel; Housing Material Cast Iron; Impeller Material Engineered Plastic; Impeller Design Non-Clogging Vortex; Warranty 3 Year; Shaft Seal Details Carbon and Ceramic; Solid Size 2 Inch Spherical; Power Cord Length 10 Foot; Power Rating 4/10 HP; Input Supply Rating 115 Volt AC 60 Hertz 1-Phase 9.4 Amp; Speed Rating 1725 RPM; Temperature Rating 130 Deg F; Motor Type Class B Insulation Oil-Filled Hermetically Sealed Permanent Split Capacitor; Inclusions/Features Upper and Lower Sleeve Bearing, Stainless Steel Hardware, Neoprene or Buna-N Gasket, Engineered Plastic Base, Cast Iron Motor Housing/Cap; Application Residential and Light Commercial Sewage and Dewatering, Wastewater/Lift Station; Applicable Standard UL 778, CSA (Canada and US), CSA C22.2 108, SSPMA; Auto On/Off Point 12-1/2 Inch, 4-1/2 Inch; Basin Dimension 18 Inch Width x 30 Inch Height (Simplex), 30 Inch Width x 36 Inch Height (Duplex)

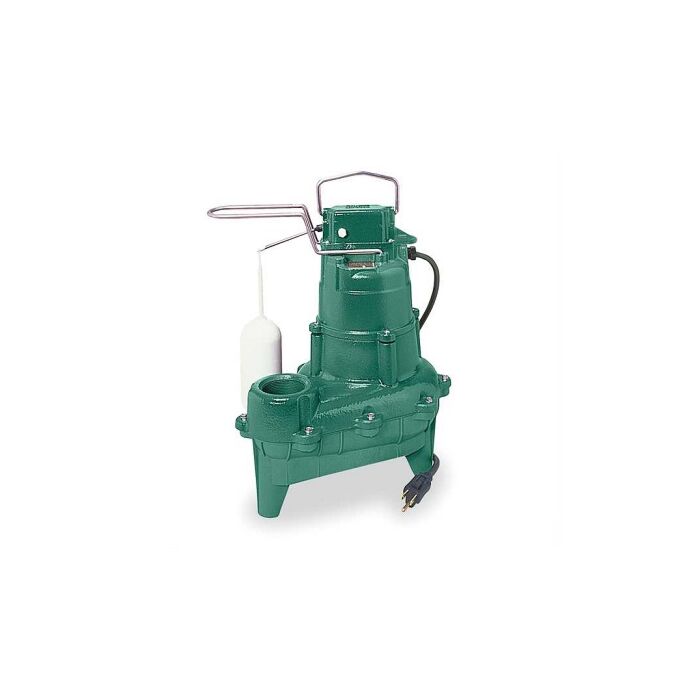

Considered one of America's most popular sewage ejectors, this robust family of pumps is known for reliability, durability and performance. These pumps are industry proven, built of cast iron with stainless steel hardware. Comes with an integral, 2-pole, snap-action float switch. The heat-dissipating cast iron body with powder coated epoxy finish provides maximum pumping performance under the most extreme conditions. With a cool run design, the hermetically sealed, oil-filled motor and non-clogging vortex impeller add up to a long-lasting, trouble-free product.
Waste-Mate Series
Specifications
Specifications
Discharge Head
18 Foot
Discharge Size
2 Inch
End Connection
Threaded
Float Type
Mechanical, Piggyback Variable Level
Flow Rate
90 GPM
Housing Material
Cast Iron
Impeller Design
Non-Clogging Vortex
Impeller Material
Engineered Plastic
Individual Item Weight
35.500 Pound
Input Supply Rating
115 Volt AC 60 Hertz 1-Phase 9.4 Amp
Manufacturer
Zoeller Company (Zoeller Pump Company)
Manufacturer Name
Zoeller Company (Zoeller Pump Company)
Manufacturer Part Number
264-0001
Motor Type
Class B Insulation, Oil Filled, Hermetically Sealed, Permanent Split Capacitor, Automatic Reset Thermally Overload Protected
Overall Dimensions
13-1/7 Inch Length x 11-1/3 Inch Width x 14-3/4 Inch Height
