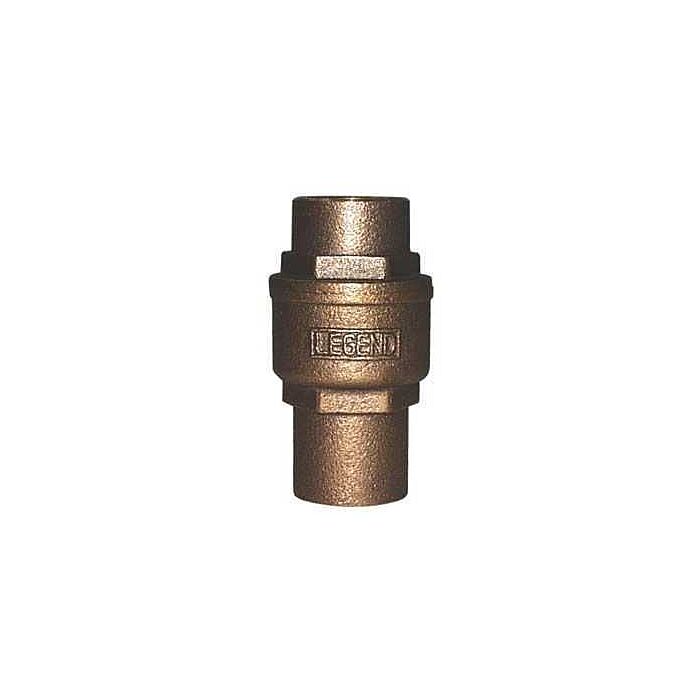

1-1/2", Soldered x Soldered, 250 PSI CWP, Lead-Free, UNS C89844 Bronze, In-Line Spring, Check Valve

SKU

105-467NL

UPC:

662545092447

Call for Availability

Legend Valve Check Valve, 1-1/2", Soldered x Soldered, 250 PSI CWP, Lead-Free, UNS C89844 Bronze, In-Line Spring

Product Description

More Information
Bore Guided Stem Poppet Minimizes Over Travel, Reducing the Chance of Premature Wear and Failure • The 1/2 Pound Cracking Pressure Spring Rate Permits Faster Low Pressure Opening without Sacrificing Quick Closure in Backflow Scenarios • Spring Loaded Silent Closure Operation • Lead-Free""	• 1-1/2, Soldered x Soldered, 250 PSI CWP, Lead-Free, UNS C89844 Bronze, In-Line Spring, Check Valve • Type In-Line Spring • Nominal Size 1-1/2 Inch • End Connection Soldered x Soldered • End to End Distance 4.23 Inch • Body Material ASTM B584 UNS C89844 Bronze • Spring Material ASTM B159 UNS C51000 Phosphor Bronze • Seat Material Buna-N Rubber • Temperature Rating 200 Deg F • Pressure Rating 250 PSI (CWP) • Application Commercial, Potable Water, Industrial • Applicable Standard ANSI/ASME B16.18, NSF/ANSI 372, MSS SP 80, WQA, ISO 9002 • Lead-Free"	• Lead-Free

More Information
Manufacturer Catalog Document	Manufacturer Specification/Technical Document
