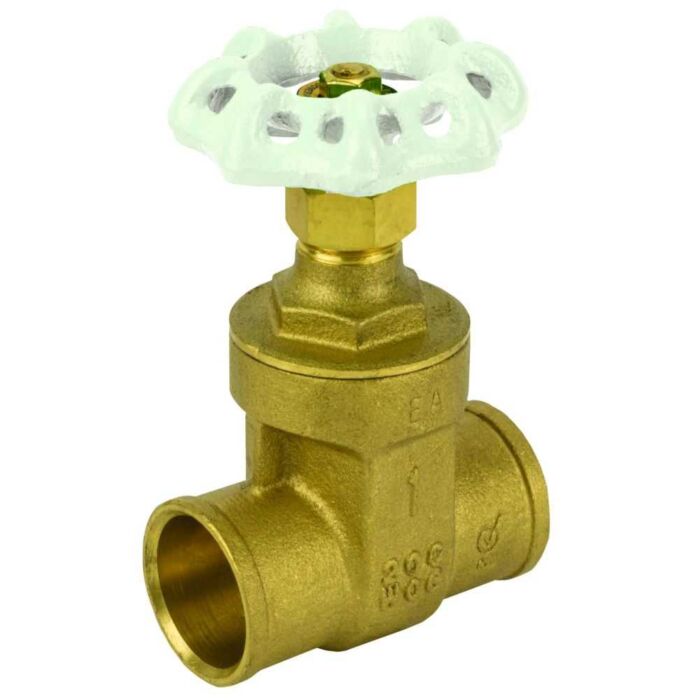

1" cxc COPPER GATE VALVE LEAD FREE JOMAR

SKU

103405G

UPC:

662527294524

Call for Availability

1" x 1", Soldered x Soldered, 200 PSI WOG, Lead-Free, Cast Brass Body, Cast Iron Handwheel, Non-Rising Stem, Solid Wedge, Gate Valve

Product Description

More Information
Dezincification Resistant Brass Alloy; Wetted Surfaces Contain Less than 0.25% Lead Content; Lead-Free	Gate Valve; Type Solid Wedge; Actuation Type Handwheel; Nominal Size 1 Inch x 1 Inch; Stem Design Non-Rising; End Connection Soldered x Soldered; End to End Distance 2.76 Inch; Body Material Cast Brass; Stem Material Brass; Bonnet Material Cast Brass; Handle Material Cast Iron; Temperature Rating 0 to 150 Deg F; Pressure Rating 200 PSI WOG; Inclusions/Features Steel Handle Nut, Aluminum Name Plate, Brass Packing Nut/Lock Nut, Cast Brass Disc, Buna-N Gland Packing; Applicable Standard ANSI/ASME B16.18, NSF/ANSI/CAN 61/372, MSS SP-139/25; Lead-Free

More Information
Manufacturer Brochure Document	Manufacturer Catalog Document	Manufacturer Other Document_1	Manufacturer Specification/Technical Document	Manufacturer Warranty Document
