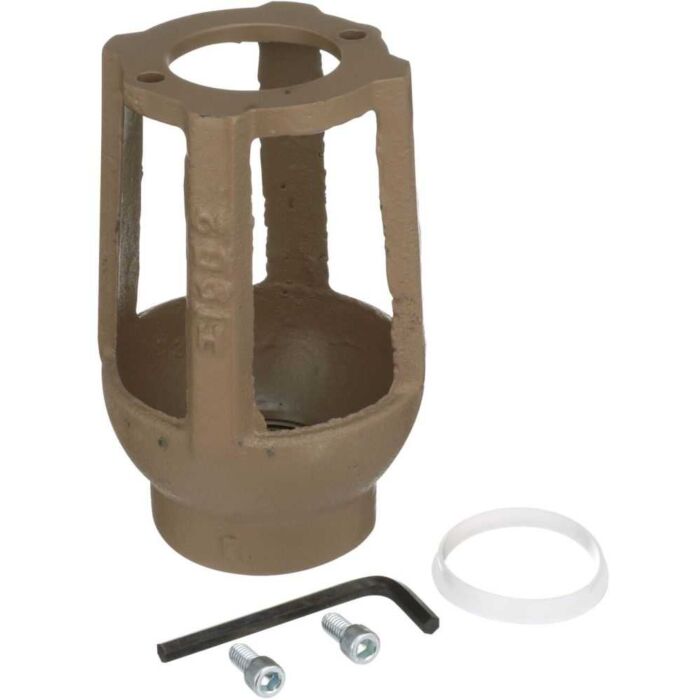

2", FPT, 4-3/8" x 6-3/4", Cast Iron, Air Gap for 1-1/4 to 3" 009/909 1-1/4 to 2" 009M1 and 2" 009M2 Series Reduced Pressure Zone Assembly
Product Description
More Information
An Air Gap Provides the Unobstructed Physical Separation Between the Discharge End of a Potable Water Supply Line and an Open Receiving Vessel; The Installation of an Air Gap and Drain Line are Recommended
Reduced Pressure Zone Assembly Air Gap; Pipe Size 2 Inch; Connection Type Female Threaded x Female Threaded; Overall Length 6-3/4 Inch; Material Cast Iron; Size 4-3/8 Inch Diameter; Valve Size 1-1/4 Inch to 3 Inch; Used On 009/LF009, 909/LF909/LF009M1/LF009M2 Reduced Pressure Zone Assembly
This air gaps for reduced pressure zone assembly, 1 1-4 to 3 IN series 009 and 909, 1 1/4 to 2 IN series 009M1 and 2 IN 009M2, provide an unobstructed, physical separation between the discharge end of a potable water supply line and an open receiving vessel. The installation of an air gap and drain line are recommended on reduced pressure zone assemblies. It can be installed vertically or horizontally (vent elbow required for vertical installation).
