1-1/2" x 1-1/2", FPT x FPT, 15 PSI WSP, 400 PSI WOG Non-Shock, Bronze, Silent, Straight, Check Valve
Product Description
More Information
Silent Check Valves Efficiently Perform All of the Functions of a Swing Check or Vertical Lift Check Valve and at the Same Time Operate Silently to Prevent the Effects of Water Hammer; Install in Horizontal or Vertical Position; Low Pressure Drop Equivalent to a Swing Check; Silent Operation
Check Valve; Type Silent, Straight; Nominal Size 1-1/2 Inch; End Connection Threaded x Threaded; End to End Distance 4 Inch; Body Material Bronze; Disc Material Brass; Spring Material Stainless Steel; Seat Material PTFE; Seal Material Nitrile; Temperature Rating -20 to 100 Deg F, 250 Deg F; Pressure Rating 15 PSI SWP, 400 PSI Non-Shock WOG; Inclusions/Features Conical Disc for Full Fluid Flow, Stainless Steel Guide Rod; Application Commercial, Industrial, Residential, Solar; Applicable Standard ISO 9001; Packaging Quantity 12 per Carton; Warranty 1 Year Limited

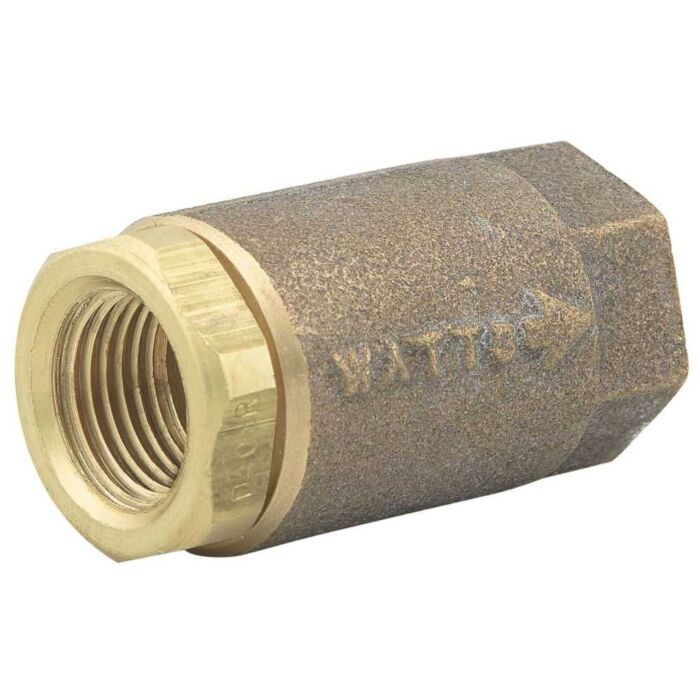

This 1 1/2 inch Maxi-Flo check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low pressure drop and can be installed horizontally or vertically. This valve consists of a brass body, brass check and adapter, conical brass disc, and NPT female threaded end connections. The maximum pressure rating is 400 psi (27.6 bar), WOG non-shock at 100 degrees F (38 degrees C).
