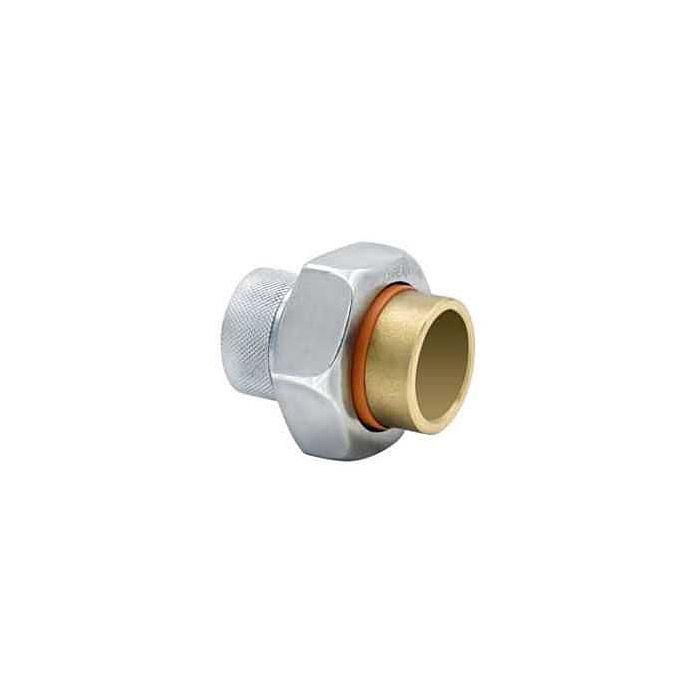

3" C X F DIELECTRIC UNION FLANGED

SKU

07-227

UPC:

662545109077

Available In stock

Only 1 Left

3" x 3", FPT x Soldered, 200 PSI Non-Shock CWP, Lead-Free, Galvanized, Cast Iron, Dielectric, Straight, Union

Product Description

More Information
Designed to Reduce Galvanic Corrosion Where Two Dissimilar Metals are Joined; Self-Aligning, Non-Conductive Elastomer Gasket and Thermoplastic Insert Create a Positive Seal and Complete Isolation Between the Tubing and Piping Ends; High Strength, Galvanized Forged Steel Construction Make them Ideal for Residential and Commercial Applications; Lead-Free	Union Fitting; Type Dielectric, Straight; Size A 3 Inch; Size B 3 Inch; End Connection Female Threaded x Soldered; Material Cast Iron; Material Specification ASTM A48; Process Cast; Finish Galvanized; Pressure Rating 200 PSI Non-Shock CWP; Temperature Rating 180 Deg F; Application Residential, Commercial, Industrial; Applicable Standard ANSI/ASME B1.20.1/B16.18, WQA; Lead-Free

Specifications
California Proposition 65 Warning	Yes
End Connection	Female Threaded x Soldered
Individual Item Weight	16.690 Pound
Manufacturer	Legend Valve
Manufacturer Name	Legend Valve
Manufacturer Part Number	301-120NL
Material	Cast Iron
Material Specification	ASTM A48
Package/Shipping Height	22.200 Inch
Package/Shipping Length	5.100 Inch
Package/Shipping Quantity	1 per Carton, 3 per Case
Package/Shipping Width	9.200 Inch
Pressure Rating	200 PSI Non-Shock CWP
Process	Cast
Series/Model	T-571NL
Size (Inches)	3"
Size A	3 Inch
Size B	3 Inch
Temperature Rating	180 Deg F
UNSPSC	40174903
UPC	662545109077

More Information
Manufacturer Catalog Document	Manufacturer Specification/Technical Document	Manufacturer Warranty Document
