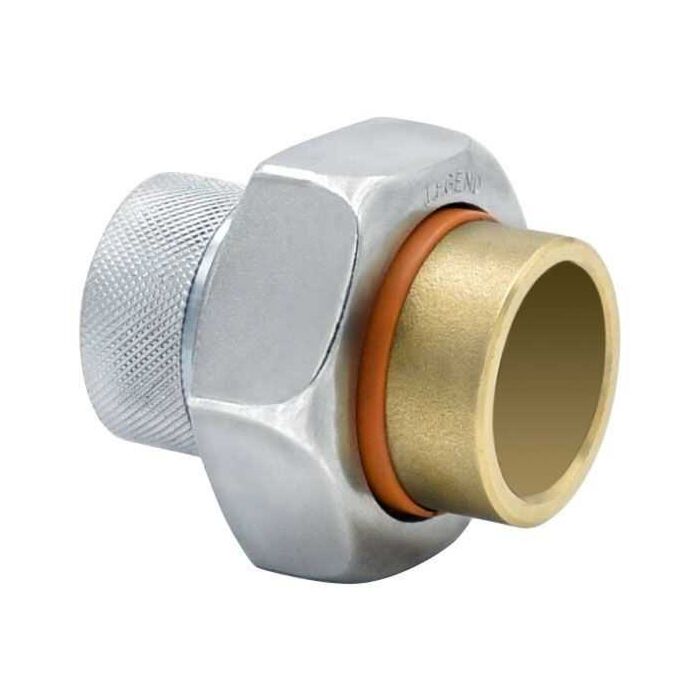

LEGEND 1" DIELECTRIC UNION
Call for Availability
1" x 1", FPT x Soldered, 200 PSI CWP/30 PSI WSP, Lead-Free, Forged, Galvanized, Carbon Steel Body/Nut, Brass Adapter, EPDM Rubber Gasket, Straight, Dielectric Union (120 per Case)
Product Description
Specifications
| End Connection | Female Threaded x Soldered |
|---|---|
| Individual Item Weight | 0.580 Pound |
| Manufacturer | Legend Valve |
| Manufacturer Name | Legend Valve |
| Manufacturer Part Number | 301-105NL |
| Material | Carbon Steel |
| Material Specification | AISI 1008A |
| Package/Shipping Height | 14.100 Inch |
| Package/Shipping Length | 14.100 Inch |
| Package/Shipping Quantity | 120 per Case |
| Package/Shipping Width | 9.600 Inch |
| Pressure Rating | 200 PSI Non-Shock CWP |
| Process | Forged |
| Series/Model | T-571NL |
| Size (Inches) | 1" |
| Size A | 1 Inch |
| Size B | 1 Inch |
| Temperature Rating | 180 Deg F |
| UNSPSC | 40174902 |
| UPC | 662545087641 |
