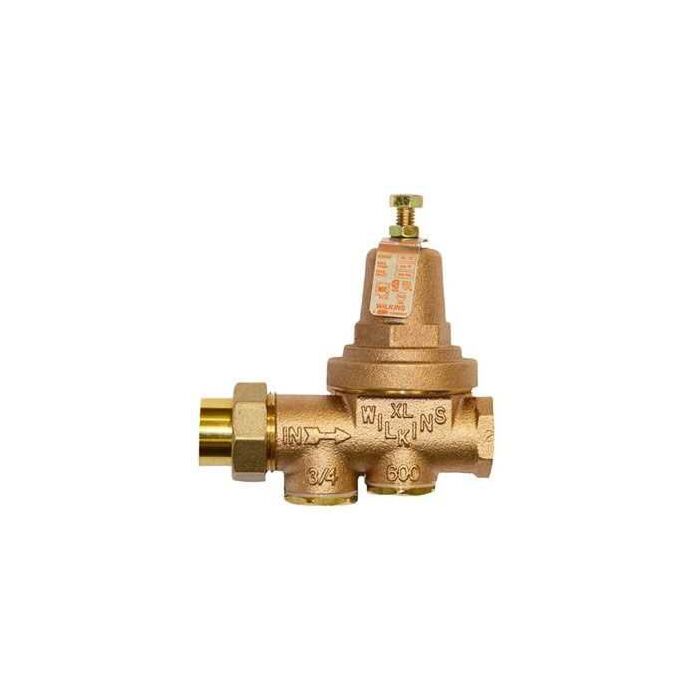

112-600XL - 1-1/2" WaterPressure Reducing Valve:Sandy, Debris Laden WaterSystems Result In FrequentPRV Strainer Cleanings. TheZurn Wilkins 600XL WaterPressure Reducing Valve, WithIts Separate Strainer Cap,Allows This Task To BeCompleted Rapidly, And IsUtilized In Residential AndCommercial Applications.
Product Description
More Information
Fiber Union Gasket Ensures Fast Installation; Contains a Separate Strainer Cap for Simplified Cleaning of the Stainless Steel Strainer; Durable Construction Ensures Low Maintenance and Lifecycle Costs; Bronze Threaded Bell Provides Superior Corrosion Resistance and Speeds Access to the Internals; Integral Strainer is Easily Cleaned with the Removal of One Cap; Designed for High Flow Capacity in Residential and Commercial Water Applications; WaterSense® Certified; Lead-Free
Water Pressure Reducing Valve; Type Single Union; Actuation Type Adjusting Bolt; Nominal Size 1-1/2 Inch x 1-1/2 Inch; End Connection Female Threaded Union x Female Threaded; End to End Distance 9-1/8 Inch; Body Material ASTM B584 Cast Bronze; Seat Material 300 Series Stainless Steel; Downstream Pressure Range 25 to 75 PSI; Standard Factory Setting 50 PSI; Strainer Supplied Yes; Temperature Rating 140 Deg F; Pressure Rating 300 PSI; Inclusions/Features Integral Bypass Check Valve, Balanced Piston Design, Cast Bronze/Brass Access Cover, 300 Series Stainless Steel Fastener, Buna Nitrile/EPDM Elastomer, Cast Bronze/Brass Stem and Plunger, Natural Vulcanized Fiber Acetal Cap Gasket, Stainless Steel Strainer; Application Residential and Commercial Water System; Applicable Standard ASSE 1003, CSA, IAPMO, FDA, NSF/ANSI 61/372, EPA; Lead-Free; Height 10 Inch
