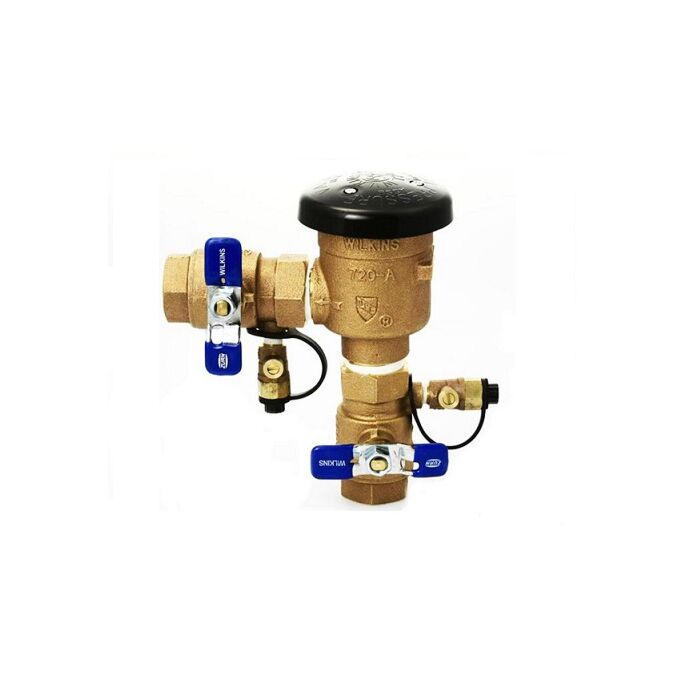

1-1/4" x 1-1/4", NPT x NPT, 150 PSI, Silicone, Cast Bronze, Pressure, Vacuum Breaker Assembly
Product Description
More Information
The Entire Assembly Shall be Accessible for Maintenance and Testing without Removing the Device from the Line; Shall Provide Protection Against Where a Potential Health Hazard Exists; Top of the Line Back Siphonage Protection; Proven Reliability and Consistent Performance; WaterSense® Certified; Water Saver
Vacuum Breaker Assembly; Type Pressure; Nominal Size 1-1/4 Inch; End Connection Threaded; Body Material ASTM B584 Cast Bronze; Disc Material Silicone; Temperature Rating 33 to 110 Deg F; Pressure Rating 150 PSI; Inclusions/Features Stainless Steel Fastener, Silicone/Buna Nitrile Elastomer, Polypropylene/Delrin Polymer, Stainless Steel Spring, Full Port Quarter Turn Ball Valve; Used On Item Irrigation Water Line System; Applicable Standard ASSE 1020, ANSI B1.20.1, CSA, IAPMO; Application Commercial, Residential
Designed for installation on irrigation water lines to protect against backsiphonage of contaminated water into the potable water supply. Assembly shall provide protection where a potential health hazard exists.
