975XL 3/4 BACKFLOW PREVENTER WILKINS ZURN

975XL 3/4 BACKFLOW PREVENTER WILKINS ZURN

Print this page

Skip to the end of the images gallery

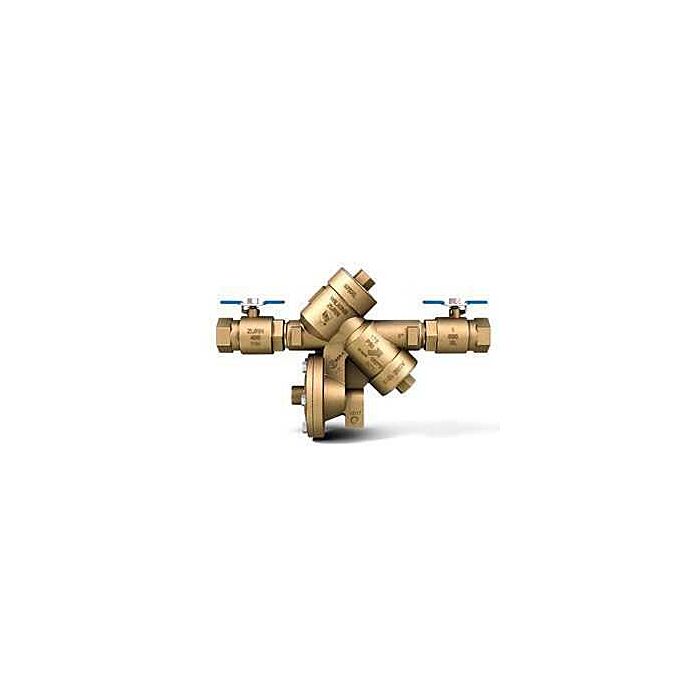

main product photo

Skip to the beginning of the images gallery

SKU

07-075

Rexnord Corporation / Zurn Industries, LLC (Zurn Wilkins)

UPC:

612052040240

Call for Availability

3/4", 175 PSI, Cast, Bronze, Reduced Pressure, Backflow Preventer

Product Description

More Information
Designed for Installation on Water Lines to Protect Against Both Backsiphonage and Backpressure of Contaminated Water into the Potable Water Supply; Assembly Shall Provide Protection Where a Potential Health Hazard Exist	Backflow Preventer; Type Dual Check, Wye Pattern, Reduced Pressure Principle Assembly; Nominal Size 3/4 Inch x 3/4 Inch; End Connection Female Threaded x Female Threaded; End to End Distance 16-1/8 Inch; Body Material ASTM B584 Cast Bronze; Disc/Poppet Material Silicone; Spring Material 300 Stainless Steel; Seat Material Noryl; Temperature Rating 180 Deg F; Pressure Rating 175 PSI; Inclusions/Features Full Port QT Ball Valve; Application Potable Water; Applicable Standard ANSI B1.20.1, AWWA C511, ASSE 1013, CSA B64.4, IAPMO, UL, CUL, EPA; Hydrostatic Test Pressure Rating 350 PSI

Specifications

Specifications
Body Material	ASTM B584 Cast Bronze
Disc Poppet Material	Silicone
End Connection	Female Threaded x Female Threaded
End To End Distance	12 Inch
Flow Rate	25 GPM
Individual Item Weight	12.000 Pound
Manufacturer	Rexnord Corporation / Zurn Industries, LLC (Zurn Wilkins)
Manufacturer Name	Rexnord Corporation / Zurn Industries, LLC (Zurn Wilkins)
Manufacturer Part Number	34-975XL
Nominal Size	3/4 Inch
Pressure Rating	175 PSI
Seal Material	Buna-N, Silicone
Series/Model	975XL
Spring Material	300 Stainless Steel
Temperature Rating	180 Deg F
UNSPSC	40141600
UPC	612052040240
