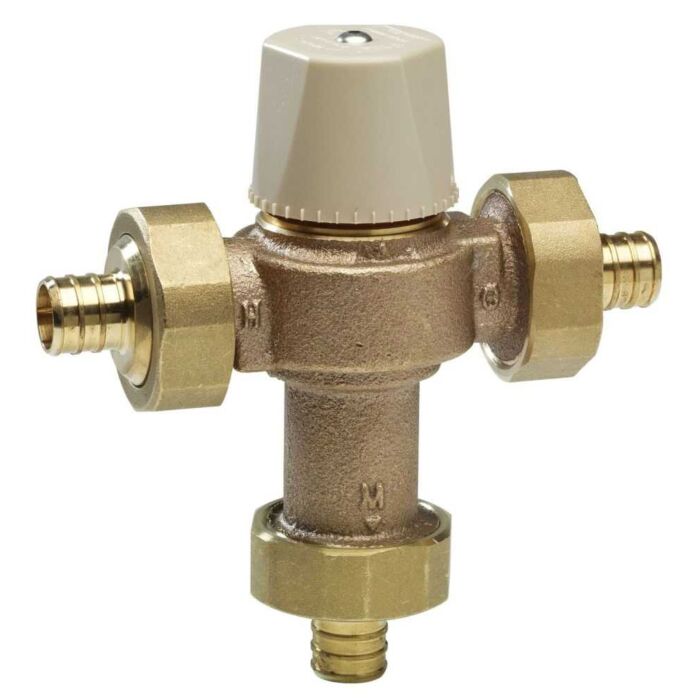

3/4" x 3/4" x 3/4", Union PEX x Union PEX x Union PEX, 150 PSI, 80 to 120 Deg F, 0.5 to 20 GPM, Lead-Free, Cast Copper Silicon Alloy Body, Stainless Steel Disc, Hot and Cold Water, Thermostatic Mixing Valve
Product Description
More Information
Lead-Free Cast Copper Silicon Alloy Body Construction; Solid Wax Hydraulic Principle Thermostat Assures Dependable Mixing of Hot and Cold Water; Thermostat Controls Both Hot and Cold Water; Adjustment Cap with Locking Feature; Integral Filter Washers and Check Valves; Locking Mechanism Secures Temperature Setting; Thermal Actuation Technology for Precise Temperature Control; Meets Requirements of the Buy American Act; Lead-Free
Thermostatic Mixing Valve; Nominal Size 3/4 Inch x 3/4 Inch; End Connection Crimped x Crimped; End to End Distance 5-1/2 Inch; Body Material Copper Silicon Alloy; Flow Rate 0.5 to 20 GPM; Set Temperature Range 105 Deg F; Temperature Rating 80 to 120 Deg F; Pressure Rating 150 PSI (Working); Exclusions Cold Water Bypass; Lead-Free; Finish Rough Bronze; Outlet Temperature Accuracy +/-3 Deg F; Cold Inlet Temperature Range 39 to 85 Deg F
This 3/4 IN Lead-Free thermostatic mixing valve is designed for commercial, residential or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a Lead-Free brass body with crimp end connections for PEX tubing, integral filter washers, solid wax hydraulic principle thermostat and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).
