Vacuum Relief Valve

SKU

07-0556031

UPC:

098268450415

Available In stock

Only 7 Left

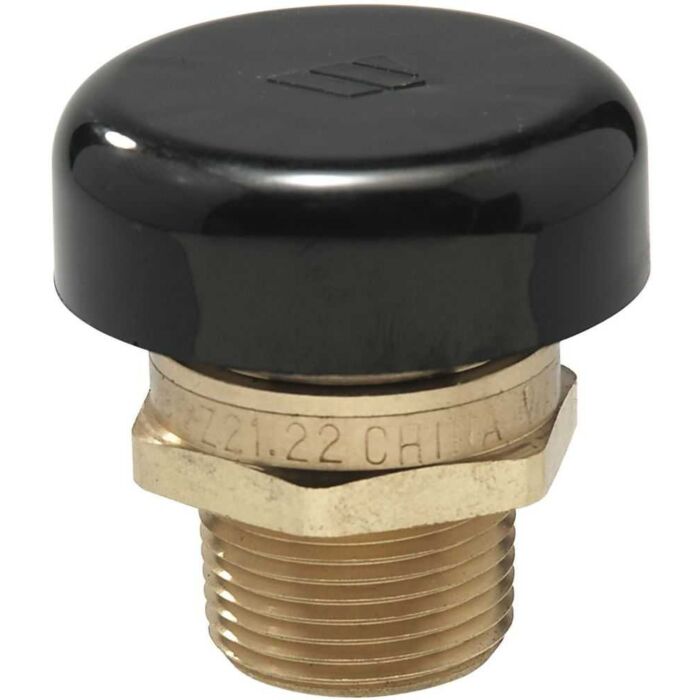

3/4", MPT, Lead-Free, Brass Body, 302 Stainless Steel Spring, Vacuum, Low Profile, Vacuum Relief Valve

Product Description

More Information
Lead-Free""	• Vacuum Relief Valve • Type Vacuum, Low Profile • Inlet Size 3/4 Inch • End Connection Male Threaded • Body Material Brass • Spring Material 302 Stainless Steel • Set Pressure Range 15 PSI • Temperature Rating 250 Deg F • Pressure Rating 200 PSI • Inclusions/Features Protective Cap, Polypropylene Cover, Silicone Disc, Buna-N O-Ring, Glass Filled Polysulfone Float • Application Domestic Water Heater, Supply Tank, Table Top Heater, Jacketed Steam Kettle, Unit Heater, Low Pressure Steam System, Steam Coil Heater • Applicable Standard CSA (Canada and US), ANSI Z21.22 • Lead-Free • Venting Capacity 15 CFM	• Lead-Free • Venting Capacity 15 CFM	• This 3/4 inch lead free vacuum relief valve is suitable for low pressure steam and water service and is ideal for use in domestic water heaters and supply tanks. This valve automatically allows air to enter into the piping system to prevent vacuum conditions that could siphon water from the system and damage water equipment. It consists of a lead free brass body construction with NPT male inlet connection and a protective cap. Maximum working pressure is 200 psi.

Specifications
Body Material	Brass
End Connection	Male Threaded
Individual Item Weight	4.000 Ounce
Inlet Size	3/4 Inch
Manufacturer	Watts Water Technologies, Inc. (Watts)
Manufacturer Name	Watts Water Technologies, Inc. (Watts)
Manufacturer Part Number	0556031
Package/Shipping Quantity	24 per Carton
Package/Shipping Weight	6.000 Pound
Pressure Rating	200 PSI
Series/Model	LFN36
Set Pressure Range	15 PSI
Spring Material	302 Stainless Steel
Temperature Rating	250 Deg F
UNSPSC	40141606
UPC	098268450415

More Information
Manufacturer Installation/Operator Document	Manufacturer Specification/Technical Document	Manufacturer Warranty Document
