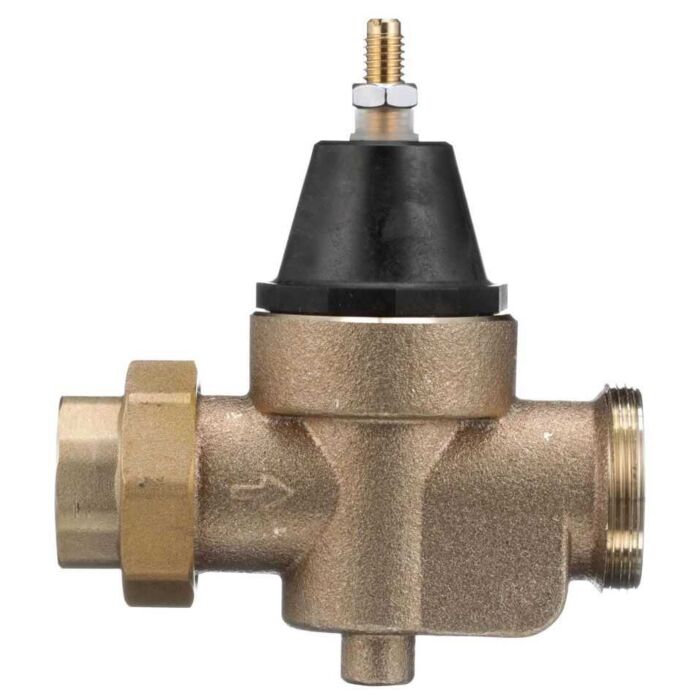

1" x 1", FPT Union x FPT, 400 PSI, Lead-Free, Cast Copper Silicon Alloy, Diaphragm Actuation, Water Pressure Reducing Valve
Product Description
More Information
Integral Stainless Steel Strainer Removable for Cleaning; Thermoplastic Seat and Cage; Serviceable In-Line; Bypass Feature Controls Thermal Expansion Pressure; Sealed Spring Cage on All Models for Accessible Outdoor or Pit Installations; Lead-Free
Water Pressure Reducing Valve; Type Standard; Actuation Type Diaphragm; Nominal Size 1 Inch x 1 Inch; End Connection Union Threaded x Female Threaded; End to End Distance 4-1/8 Inch; Body Material Cast Copper Silicon Alloy; Seat Material Thermoplastic; Downstream Pressure Range 25 to 75 PSI; Standard Factory Setting 50 PSI; Strainer Supplied Yes; Temperature Rating 33 to 180 Deg F; Pressure Rating 400 PSI; Inclusions/Features Thermal Expansion Bypass, Stainless Steel Strainer, Elastomer Disc; Application Commercial and Residential; Lead-Free
Series LFN45B-M1 Water Pressure Reducing Valves are designed to reduce incoming water pressure to a sensible level to protect plumbing system components and reduce water consumption. The LFN45B features Lead-Free construction to comply with Lead-Free installation requirements. This series is suitable for water supply pressures up to 400psi (27.6 bar) and may be adjusted from 25 - 75psi (172 - 517 kPa). The standard setting is 50psi (345 kPa). All parts are quickly and easily serviceable without removing the valve from the line. The standard bypass feature permits the flow of water back through the valve into the main when pressures, due to thermal expansion on the outlet side of the valve, exceed the pressure in the main supply.
